Stainless Steel Male Stud Coupling Metric Parallel with Elastomer Seal
Stainless Steel Male Stud Coupling Metric Parallel with Elastomer Seal
SKU:FIT-1d7ccf
High-quality stainless steel male stud coupling for secure, leak-free connections. DIN 2353 compliant. Ideal for institutional procurement.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling Metric Parallel with Elastomer Seal
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling Metric Parallel with Elastomer Seal
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

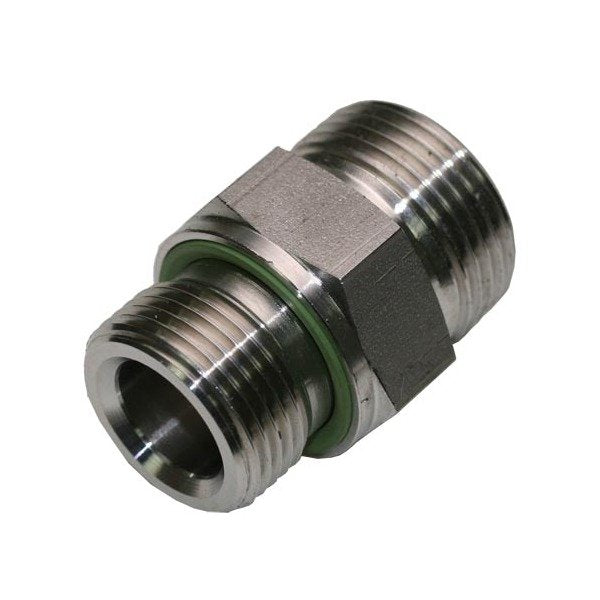

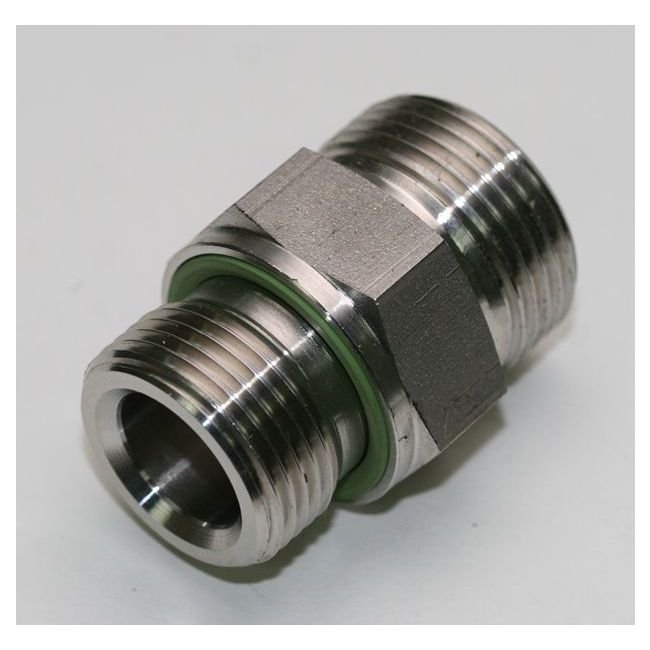

The Stainless Steel Male Stud Coupling with Elastomer Seal Thread Metric Parallel is a robust fitting designed for light-duty applications. Crafted from high-quality stainless steel, it ensures durability and corrosion resistance. With a nominal operating pressure of 315 bar and compliance with DIN 2353 standards, this fitting guarantees reliable performance. Its precise dimensions and elastomer seal provide a secure and leak-free connection. Ideal for institutional and government procurement needs.

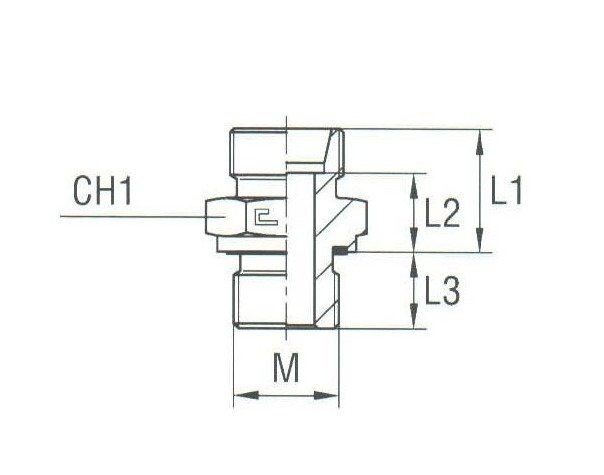

Product Specifications
Specifications Ch1
27 mm
Specifications L1
21.5 mm
Specifications L2
14.0 mm
Specifications L3
12.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
18x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
18.0 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread Metric Parallel
