Stainless Steel Male Stud Coupling Thread BSP Parallel
Stainless Steel Male Stud Coupling Thread BSP Parallel
SKU:FIT-c3a3f6
Durable Stainless Steel Male Stud Coupling for up to 315 bar pressure, DIN 2353 compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling Thread BSP Parallel
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling Thread BSP Parallel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling Thread BSP Parallel is designed for light-duty applications with a nominal operating pressure of up to 315 bar. Constructed with high-quality stainless steel, this coupling ensures durability and corrosion resistance. With a tube diameter of 12.0 mm and G - Thread Size of 3/8, it meets DIN 2353 standards. Ideal for creating secure and leak-free connections in hydraulic systems.

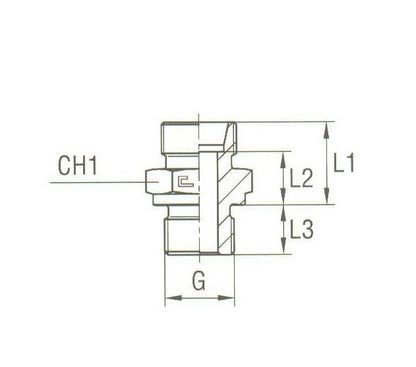

Product Specifications
Specifications Ch1
22 mm
Specifications G Thread Size
3/8
Specifications L1
19.5 mm
Specifications L2
12.5 mm
Specifications L3
12.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
Category 6
Male Stud Coupling Thread BSP Parallel
