Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel

Name: Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-e85e99
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-e85e99

Durable Stainless Steel Male Stud Coupling for light duty applications, DIN 2353 compliant

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

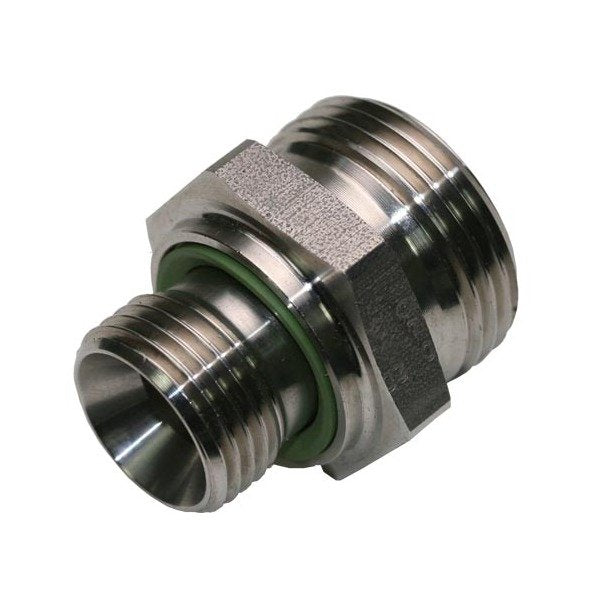

The Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel is designed for light duty applications, made of durable stainless steel. This fitting features a tube diameter of 10.0mm with a G-Thread size of 1/8, suitable for a nominal operating pressure of 315 bar. Compliant with DIN 2353 standards, it offers precise dimensions with L1 of 17.5mm, L2 of 10.5mm, and L3 of 8.0mm, ensuring reliable performance in various industrial settings.

Product Specifications

Specifications Ch1

17.0 mm

Specifications G Thread Size

1/8

Specifications L1

17.5 mm

Specifications L2

10.5 mm

Specifications L3

8.0 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

10.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread BSP Parallel

Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel
