Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel
Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel
SKU:FIT-e365a5
Heavy-duty Stainless Steel Male Stud Coupling for secure high-pressure connections. DIN 2353 compliant.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel
$39.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

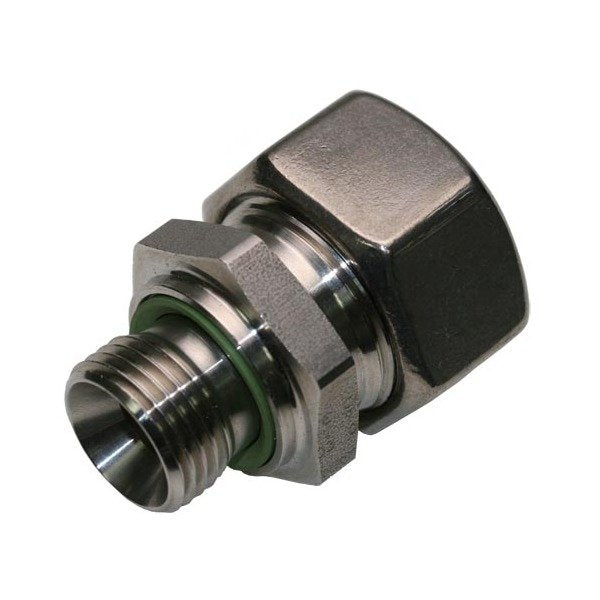

The Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - Equipped B3 Ring is a heavy-duty fitting designed to withstand pressures up to 400 bar. Made of durable stainless steel, this coupling ensures a secure connection with a 25.0 mm tube diameter. Compliant with DIN 2353 standards, it features precise dimensions including L2: 23.0 mm, L3: 16.0 mm, L4: 47 mm, CH1: 41 mm, and CH2: 46 mm, making it ideal for industrial applications.
Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
46 mm
Specifications G Thread Size
3/4
Specifications L2
23.0 mm
Specifications L3
16.0 mm
Specifications L4
47 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
25.0 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread BSP Parallel
