Stainless Steel Male Stud Coupling with Elastomer Seal - BSP Parallel
Stainless Steel Male Stud Coupling with Elastomer Seal - BSP Parallel
SKU:FIT-2bad71
High-quality Stainless Steel Male Stud Coupling with Elastomer Seal for heavy-duty applications. Compliant with DIN 2353 standards.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling with Elastomer Seal - BSP Parallel
$34.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling with Elastomer Seal - BSP Parallel
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling with Elastomer Seal is designed for heavy-duty applications with a tube diameter of 12.0mm and a pressure rating of 630 bar. Made of high-quality stainless steel, this coupling ensures durability and reliability. It complies with DIN 2353 standards, making it suitable for institutional and government procurement needs.

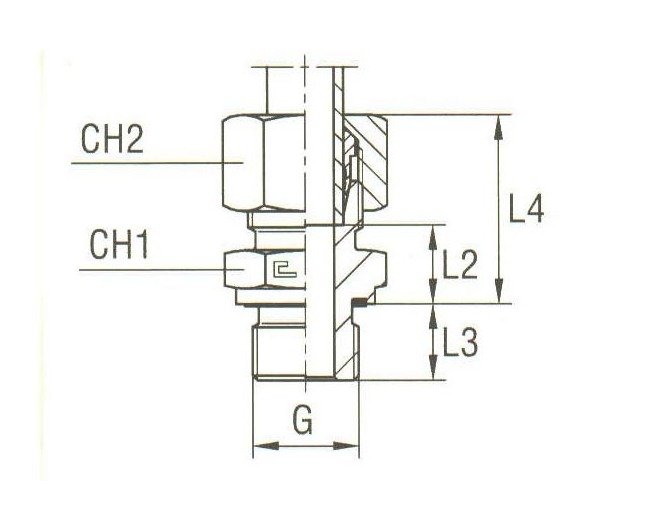

Product Specifications
Specifications Ch1
22 mm
Specifications Ch2
24 mm
Specifications G Thread Size
1/4
Specifications L2
16.5 mm
Specifications L3
12.0 mm
Specifications L4
32.5 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread BSP Parallel
