Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - DIN 2353

Name: Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - DIN 2353
Brand: World Wide Metric, Inc.
SKU: FIT-2d6021
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-2d6021

Stainless Steel Male Stud Coupling for reliable connections in light-duty applications. Compliant with DIN 2353 standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

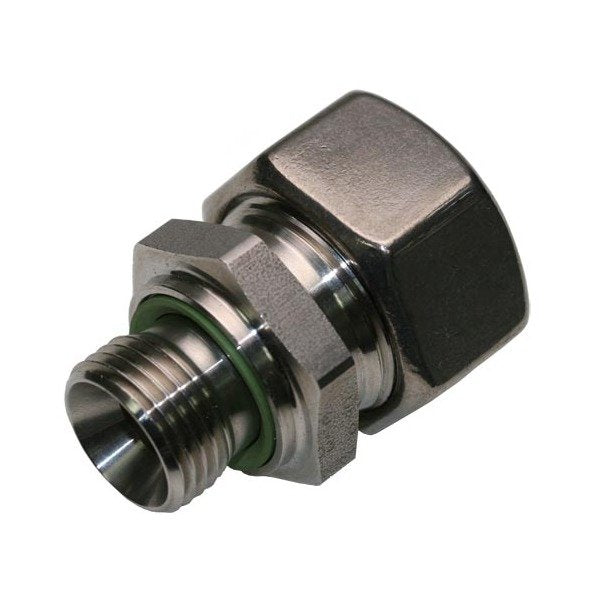

The Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel is designed for light-duty applications with a 6.0mm tube diameter and a G-thread size of 1/4. With a nominal operating pressure of 315 bar, this coupling ensures secure connections. Compliant with DIN 2353 standards, it features precise dimensions including L2: 10.0mm, L3: 12.0mm, L4: 24.5mm, CH1: 19.0mm, and CH2: 14mm, providing reliability and durability in fluid systems.

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

14 mm

Specifications G Thread Size

1/4

Specifications L2

10.0 mm

Specifications L3

12.0 mm

Specifications L4

24.5 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

6.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread BSP Parallel

Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - DIN 2353
