Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - DIN 2353 Compliant
Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - DIN 2353 Compliant
SKU:FIT-906611
High-quality Stainless Steel Male Stud Coupling for light duty applications. DIN 2353 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - DIN 2353 Compliant
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - DIN 2353 Compliant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling with Elastomer Seal Thread BSP Parallel is a durable fitting designed for light duty applications. Made of high-quality stainless steel, it ensures reliability and longevity. With a tube diameter of 35.0 mm and a nominal operating pressure of 160 bar, this coupling is ideal for various industrial settings. Compliant with DIN 2353 standards, it meets strict quality requirements for institutional and government procurement.

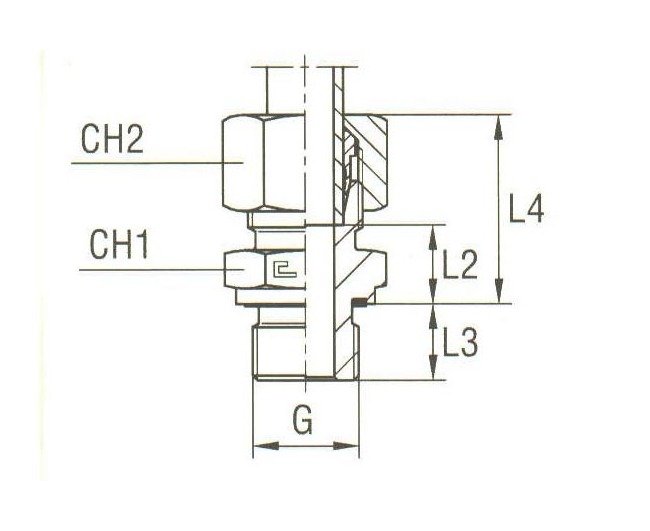

Product Specifications
Specifications Ch1
46 mm
Specifications Ch2
50 mm
Specifications G Thread Size
1
Specifications L2
17.5 mm
Specifications L3
18.0 mm
Specifications L4
39.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
35.0 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread BSP Parallel
