Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - DIN 2353 Compliant
Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - DIN 2353 Compliant
SKU:FIT-ff2d03
Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - DIN 2353 Compliant, ideal for light-duty applications. Nominal pressure: 315 bar.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - DIN 2353 Compliant
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - DIN 2353 Compliant
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

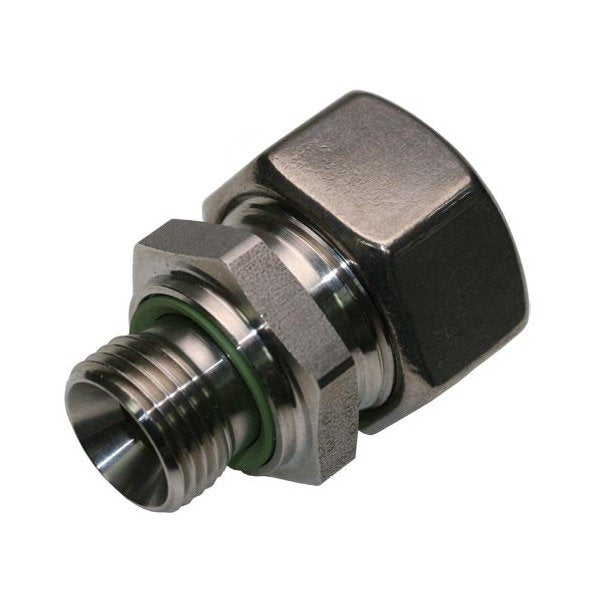

The Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel, equipped with a B4 ring, is designed for light-duty applications with a nominal operating pressure of 315 bar. This fitting features a tube diameter of 8.0mm, G-thread size of 1/4, and meets DIN 2353 standards. With precise dimensions including CH1 of 19.0mm and CH2 of 17.0mm, this coupling ensures secure and leak-free connections.
Ready to Grow Without Cash Flow Constraints?

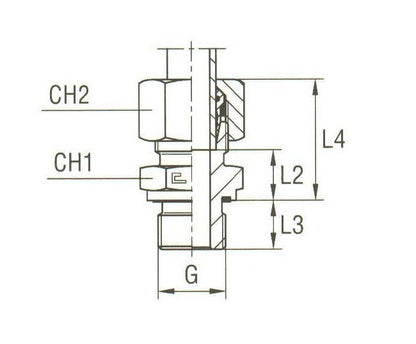

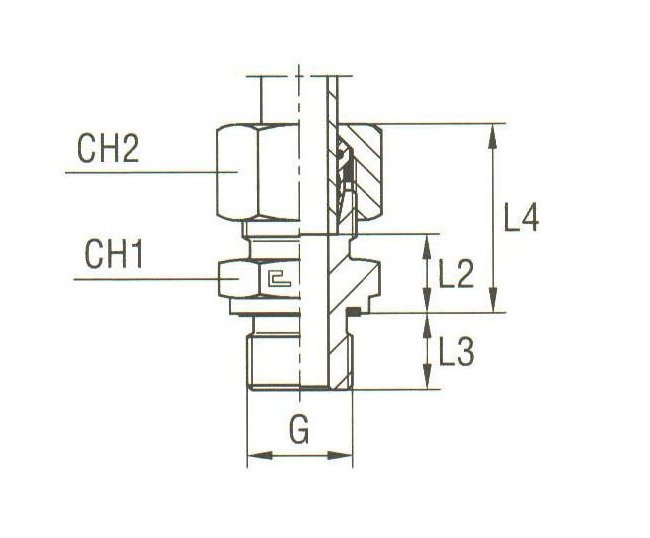

Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
17.0 mm
Specifications G Thread Size
1/4
Specifications L2
10.0 mm
Specifications L3
12.0 mm
Specifications L4
25.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
8.0 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread BSP Parallel
