Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - DIN 2353 Compliant
Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - DIN 2353 Compliant
SKU:FIT-5ccc5c
High-quality stainless steel male stud coupling designed for extra light-duty applications, DIN 2353 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - DIN 2353 Compliant
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - DIN 2353 Compliant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel is designed for superior performance in extra light-duty applications. Constructed with high-quality stainless steel, it ensures durability and reliability under pressure. With a tube diameter of 6.0mm and a max operating pressure of 100 bar, this coupling is ideal for various industrial settings. Meeting DIN 2353 standards, it guarantees precision and compatibility, making it a dependable choice for institutional users.
Ready to Grow Without Cash Flow Constraints?

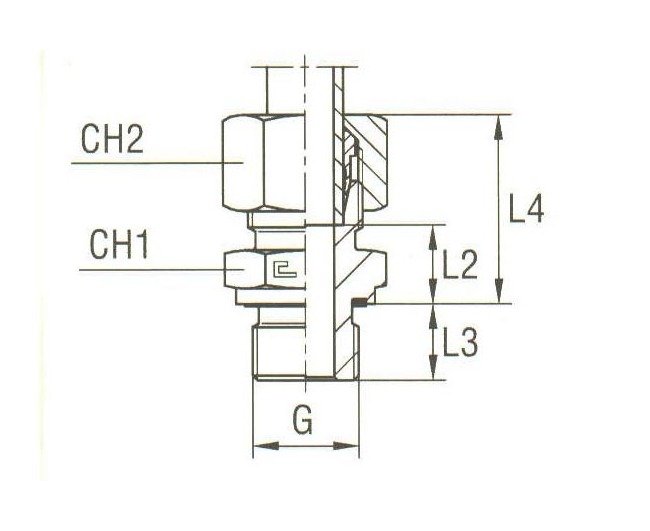

Product Specifications
Specifications Ch1
14 mm
Specifications Ch2
12 mm
Specifications G Thread Size
1/8
Specifications L2
8.0 mm
Specifications L3
8.0 mm
Specifications L4
20 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
100 bar
Specifications Pressure
Extra Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread BSP Parallel
