Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - DIN 2353 Compliant
Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - DIN 2353 Compliant
SKU:FIT-5574fb
Reliable Stainless Steel Male Stud Coupling for light-duty applications. Compliant with DIN 2353 standards.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - DIN 2353 Compliant
$25.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling with Elastomer Seal BSP Parallel - DIN 2353 Compliant
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling with Elastomer Seal features a precise design for light-duty applications, with a Tube Diameter of 12.0mm and a G-Thread Size of 1/2. With a Nominal Operating Pressure of 315 bar, this coupling ensures reliable performance. Meeting DIN 2353 standards, it offers durability and efficiency, making it suitable for various industrial applications.

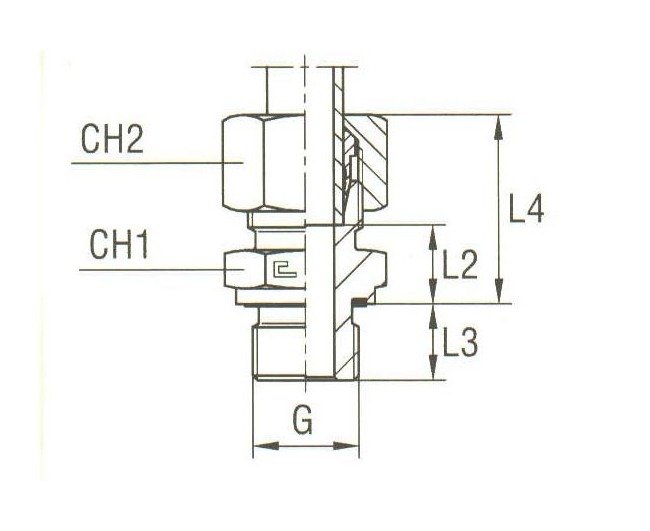

Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
22 mm
Specifications G Thread Size
1/2
Specifications L2
13.0 mm
Specifications L3
14.0 mm
Specifications L4
27.5 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread BSP Parallel
