Stainless Steel Male Stud Coupling with Elastomer Seal, BSP Parallel - Equipped B3 Ring

Name: Stainless Steel Male Stud Coupling with Elastomer Seal, BSP Parallel - Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-6769af
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-6769af

Stainless Steel Male Stud Coupling with Elastomer Seal - Ideal for light-duty applications. DIN 2353 compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

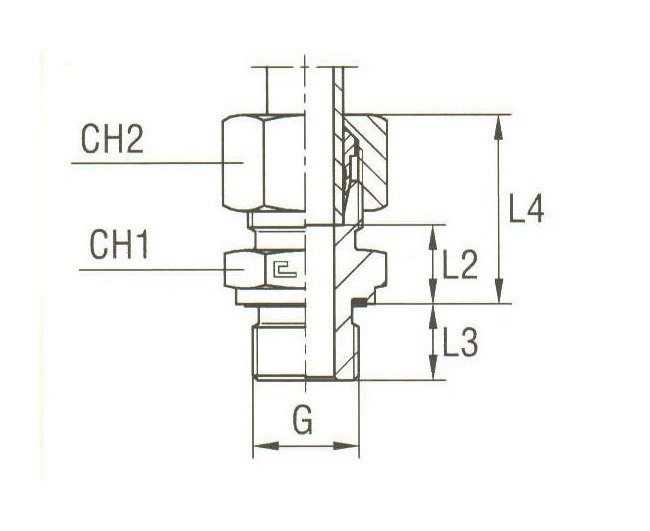

The Stainless Steel Male Stud Coupling with Elastomer Seal is designed for light-duty applications, with a tube diameter of 12.0 mm and a G-thread size of 1/4. Operating at a nominal pressure of 315 bar, this fitting meets DIN 2353 standards, ensuring reliability and durability. With precise dimensions including L2: 12.0 mm, L3: 12.0 mm, L4: 26.5 mm, CH1: 19.0 mm, and CH2: 22 mm, this coupling offers a secure and leak-free connection solution for various industrial settings.

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

22 mm

Specifications G Thread Size

1/4

Specifications L2

12.0 mm

Specifications L3

12.0 mm

Specifications L4

26.5 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread BSP Parallel
