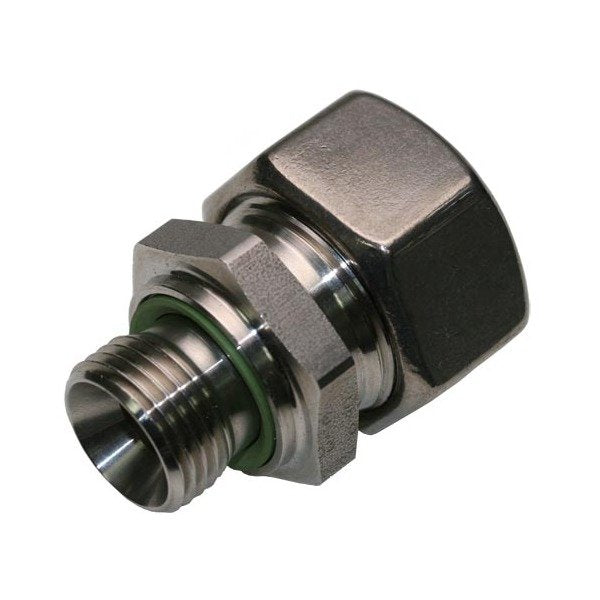

Stainless Steel Male Stud Coupling with Elastomer Seal - BSP Parallel Thread

Name: Stainless Steel Male Stud Coupling with Elastomer Seal - BSP Parallel Thread
Brand: World Wide Metric, Inc.
SKU: FIT-290852
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-290852

Premium stainless steel male stud coupling with elastomer seal for secure, leak-free connections. Complies with DIN 2353 standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Male Stud Coupling with Elastomer Seal Thread BSP Parallel - Equipped B3 Ring is a high-quality fitting designed for light-duty applications. Made from durable stainless steel, it ensures reliable performance with a tube diameter of 22mm and a nominal operating pressure of 160 bar. Meeting DIN 2353 standards, it features precise dimensions including L2: 16.5mm, L3: 14.0mm, L4: 33mm, CH1: 32mm, and CH2: 36mm. This coupling provides a secure and leak-free connection suitable for various industrial settings, offering both durability and efficiency.

Product Specifications

Specifications Ch1

32 mm

Specifications Ch2

36 mm

Specifications G Thread Size

1/2

Specifications L2

16.5 mm

Specifications L3

14.0 mm

Specifications L4

33 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

22 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread BSP Parallel

Stainless Steel Male Stud Coupling with Elastomer Seal - BSP Parallel Thread
