Stainless Steel Male Stud Coupling with Elastomer Seal - DIN 2353 Compliant

Name: Stainless Steel Male Stud Coupling with Elastomer Seal - DIN 2353 Compliant
Brand: World Wide Metric, Inc.
SKU: FIT-0169cf
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-0169cf

Reliable stainless steel male stud coupling for light-duty applications meeting DIN 2353 standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

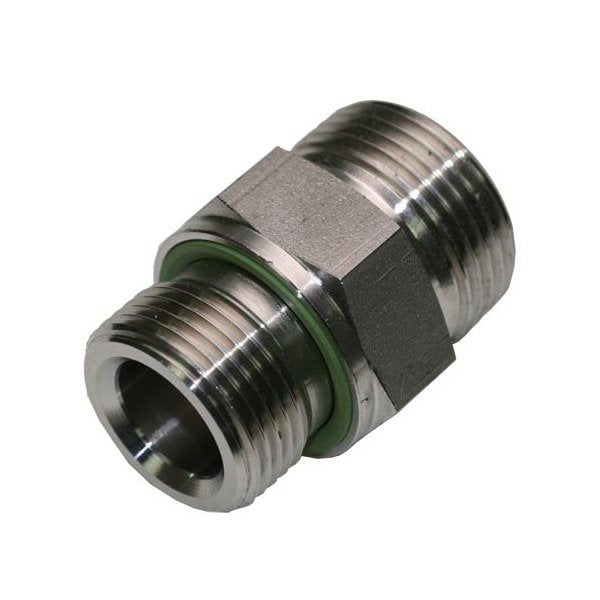

The Stainless Steel Male Stud Coupling with Elastomer Seal ensures a reliable, leak-free connection in a compact design suitable for light-duty applications. With a tube diameter of 18.0mm and a pressure rating of 315 bar, this coupling meets DIN 2353 standards. The precision-crafted body, with metric parallel threads and elastomer seal, guarantees optimal performance and durability, making it ideal for a wide range of hydraulic systems.

Product Specifications

Specifications Ch1

27 mm

Specifications L1

22 mm

Specifications L2

14.5 mm

Specifications L3

14.0 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

18.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread Metric Parallel
