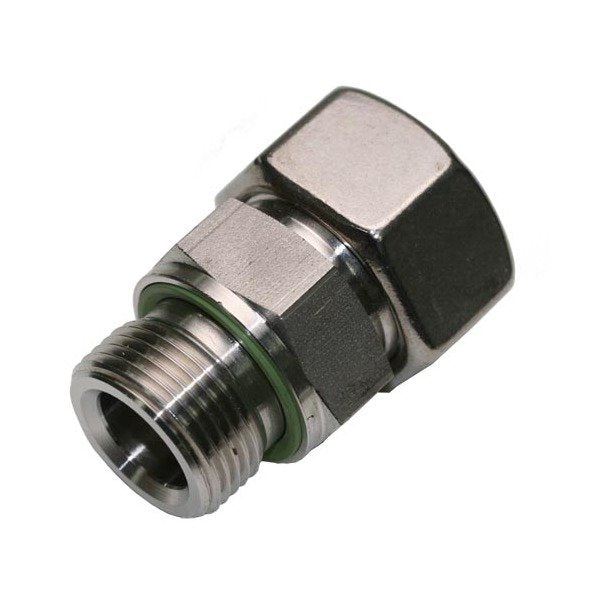

Stainless Steel Male Stud Coupling with Elastomer Seal - DIN 2353 Compliant

Name: Stainless Steel Male Stud Coupling with Elastomer Seal - DIN 2353 Compliant
Brand: World Wide Metric, Inc.
SKU: FIT-1d32ed
Price: 34.99 USD
Availability: OutOfStock

SKU:FIT-1d32ed

Heavy-duty Stainless Steel Male Stud Coupling with Elastomer Seal - DIN 2353 Compliant, for reliable industrial connections

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

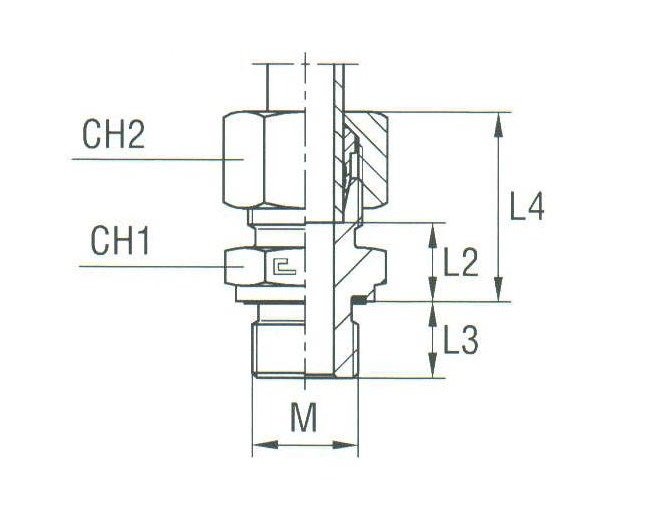

The Stainless Steel Male Stud Coupling with Elastomer Seal is designed for heavy-duty applications, with a 16.0 mm tube diameter and a 22x1.5 M-thread size. Operating at a pressure of 400 bar, it meets DIN 2353 standards. Featuring precise dimensions including L2 of 18.5 mm, L3 of 14.0 mm, and L4 of 37.0 mm, this coupling ensures secure connections and reliability in industrial settings.

Product Specifications

Specifications Ch1

27 mm

Specifications Ch2

30 mm

Specifications L2

18.5 mm

Specifications L3

14.0 mm

Specifications L4

37.0 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

16.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread Metric Parallel

Stainless Steel Male Stud Coupling with Elastomer Seal - DIN 2353 Compliant
