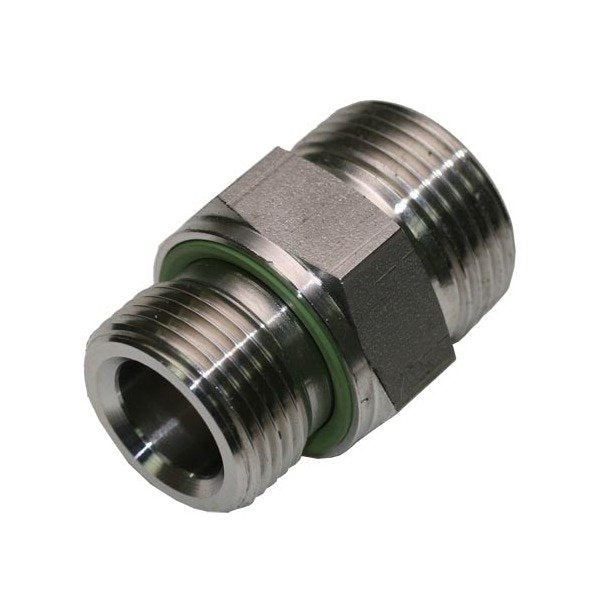

Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel
Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel
SKU:FIT-efb0f2
Reliable Stainless Steel Male Stud Coupling for hydraulic systems. Nominal pressure of 160 bar. DIN 2353 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling with Elastomer Seal is designed for light-duty applications, featuring a tube diameter of 22mm and M-Thread Size of 26x1.5. With a nominal operating pressure of 160 bar, this coupling meets DIN 2353 standards and ensures reliable performance. The precision-engineered L1, L2, and L3 dimensions, along with CH1 measurement, guarantee a secure and leak-free connection, making it ideal for various hydraulic systems.
Product Specifications
Specifications Ch1
32 mm
Specifications L1
24.0 mm
Specifications L2
16.5 mm
Specifications L3
16.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
26x1.5
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
22 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread Metric Parallel
