Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel
Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel
SKU:FIT-8bcba2
High-quality Stainless Steel Male Stud Coupling for heavy-duty applications. DIN 2353 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

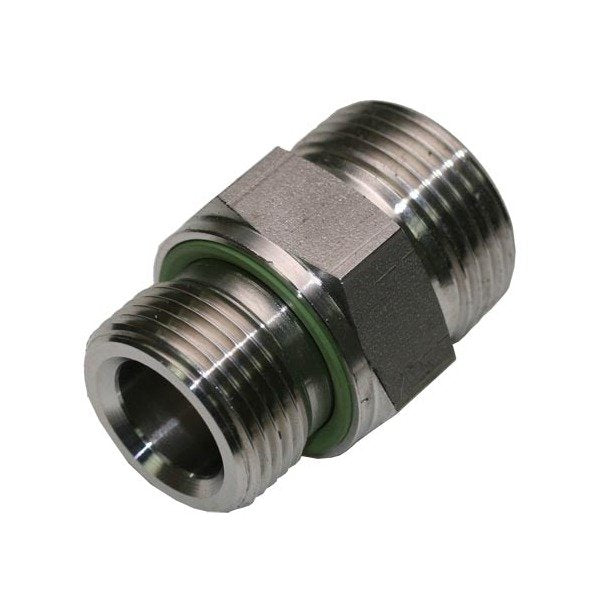

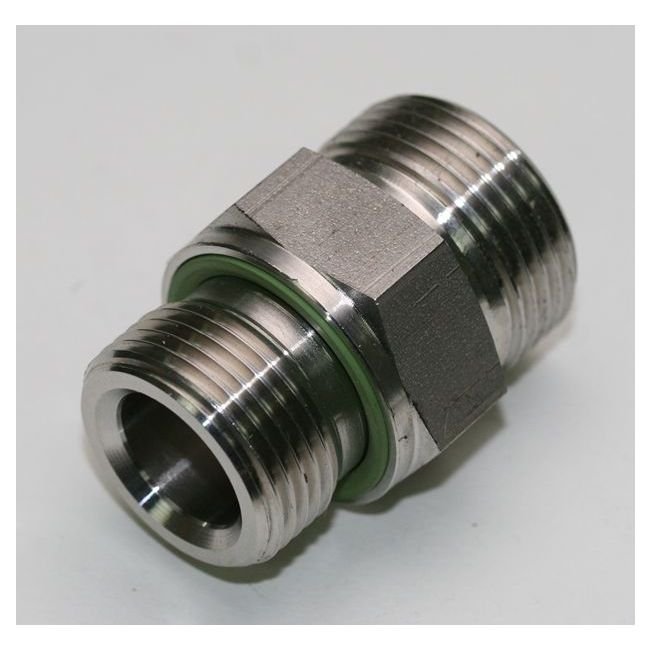

The Stainless Steel Male Stud Coupling with Elastomer Seal offers heavy-duty performance with a pressure rating of 315 bar. Constructed from high-quality stainless steel, this coupling ensures durability and reliability. With a tube diameter of 38.0mm and M-thread size of 48x2, it meets DIN 2353 standards, making it suitable for a wide range of industrial applications.

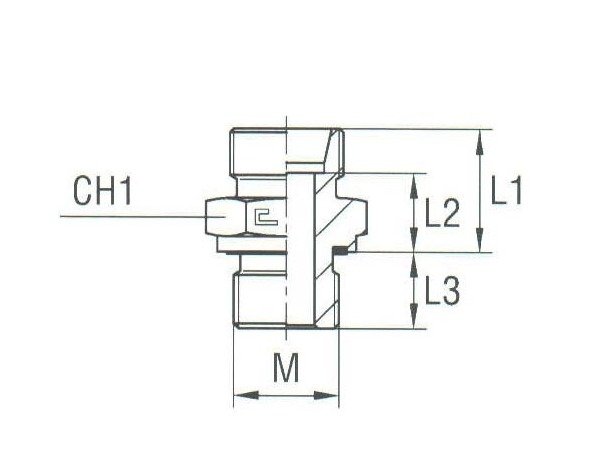

Product Specifications
Specifications Ch1
55 mm
Specifications L1
42.0 mm
Specifications L2
26.0 mm
Specifications L3
22.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
48x2
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
38.0 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread Metric Parallel
