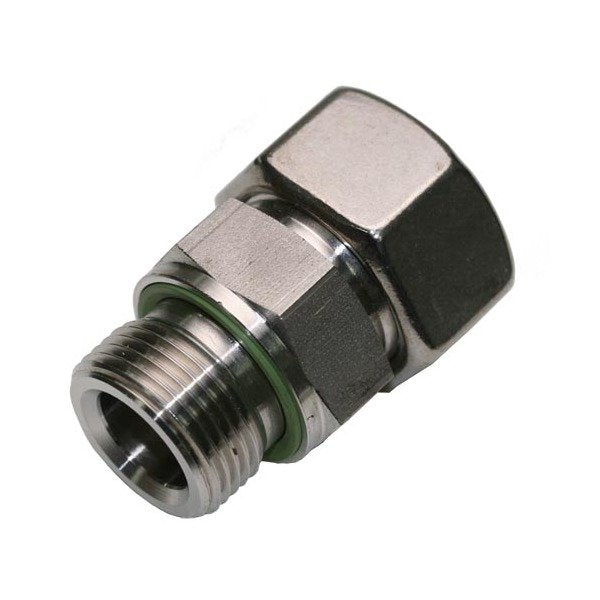

Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel

Name: Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-6bb017
Price: 39.99 USD
Availability: OutOfStock

SKU:FIT-6bb017

High-performance Male Stud Coupling with Elastomer Seal for light-duty applications, DIN 2353 compliant

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

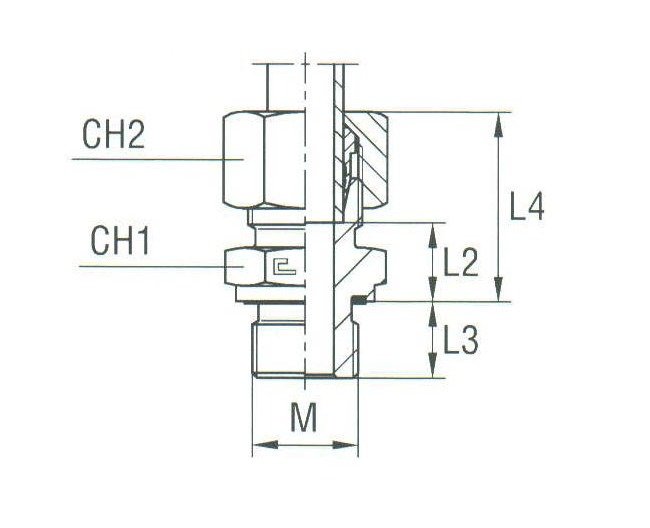

The Stainless Steel Male Stud Coupling with Elastomer Seal is specifically designed for light-duty applications with a Pressure rating of 160 bar. Made from durable stainless steel, it ensures high performance and reliability. This coupling's precise measurements, including a tube diameter of 22 mm and M-thread size of 22x1.5, meet DIN 2353 standards. With dimensions of L2: 16.5 mm, L3: 14.0 mm, L4: 33 mm, CH1: 32 mm, CH2: 36 mm, it offers exceptional compatibility and easy installation for a wide range of industrial applications.

Product Specifications

Specifications Ch1

32 mm

Specifications Ch2

36 mm

Specifications L2

16.5 mm

Specifications L3

14.0 mm

Specifications L4

33 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

22 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread Metric Parallel
