Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel
Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel
SKU:FIT-2ccf74
High-quality Stainless Steel Male Stud Coupling with Elastomer Seal for heavy-duty applications. Meets DIN 2353 standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

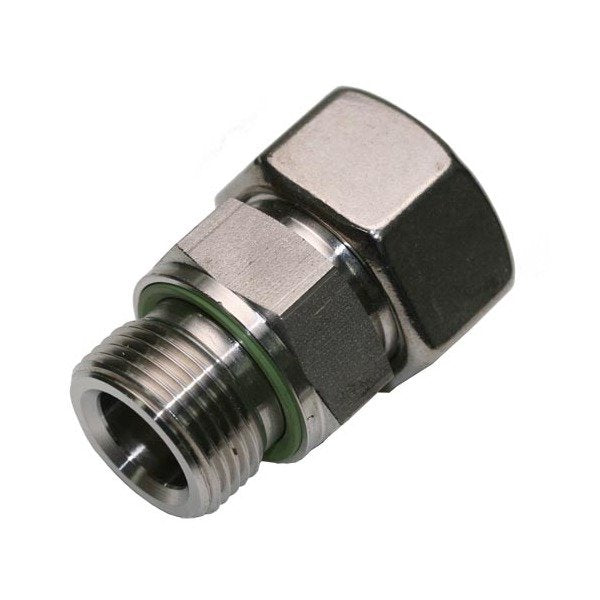

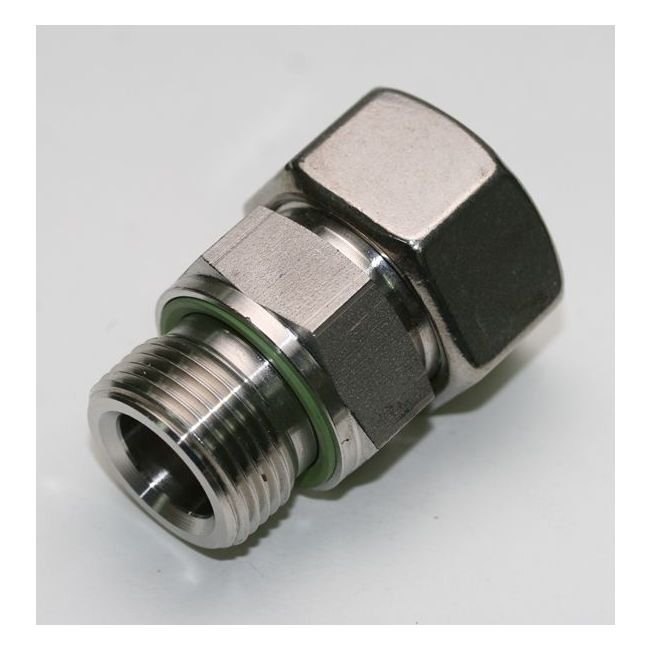

The Stainless Steel Male Stud Coupling with Elastomer Seal is designed for heavy-duty applications, featuring a tube diameter of 16.0mm and a pressure rating of up to 400 bar. Constructed with high-quality stainless steel, it meets DIN 2353 standards, ensuring durability and reliability. The elastomer seal provides a secure connection, making it ideal for industrial use.
Ready to Grow Without Cash Flow Constraints?

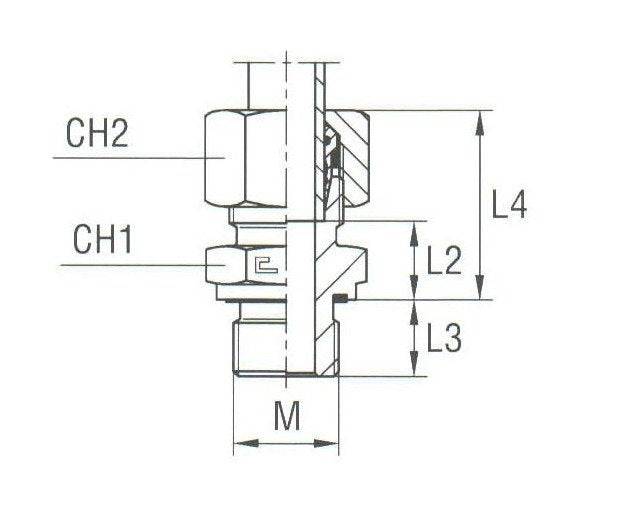

Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
30 mm
Specifications L2
18.5 mm
Specifications L3
14.0 mm
Specifications L4
37.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
22x1.5
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
16.0 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread Metric Parallel
