Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel
Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel
SKU:FIT-c0f9ca
High-performance Stainless Steel Male Stud Coupling with Elastomer Seal for heavy-duty applications, DIN 2353 compliant.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel
$45.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling with Elastomer Seal is designed for heavy-duty applications, featuring a tube diameter of 38.0mm and a pressure rating of 315 bar. This coupling meets DIN 2353 standards, ensuring reliability and performance. With precise thread sizing of 48x2, it provides a secure and leak-free connection. The elastomer seal enhances sealing properties, making it ideal for industrial and institutional settings.

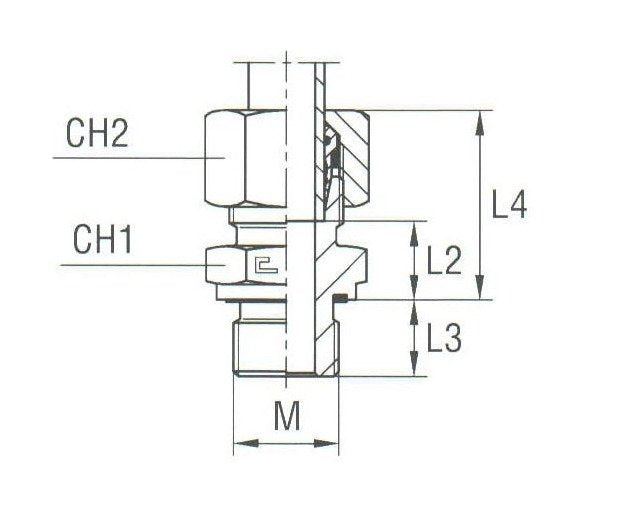

Product Specifications
Specifications Ch1
55 mm
Specifications Ch2
60 mm
Specifications L2
26.0 mm
Specifications L3
22.0 mm
Specifications L4
57 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
48x2
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
38.0 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread Metric Parallel
