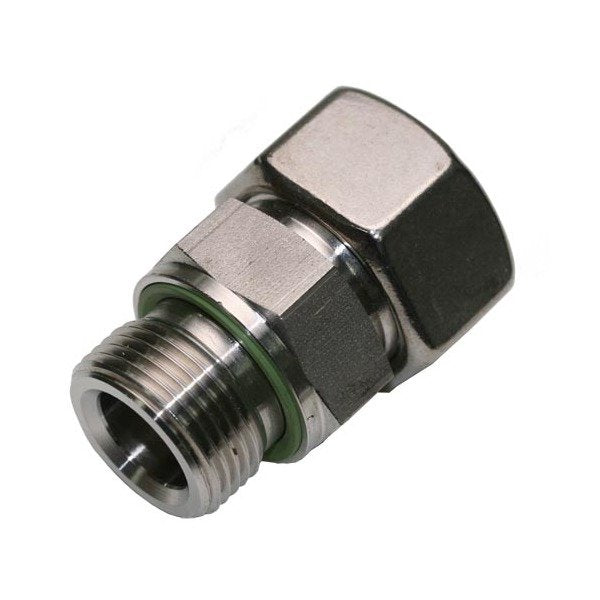

Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel B3 Ring

Name: Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-b0813a
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-b0813a

Stainless Steel Male Stud Coupling - Light Duty, DIN 2353 Compliant, 315 bar, 10.0mm, 18x1.5

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

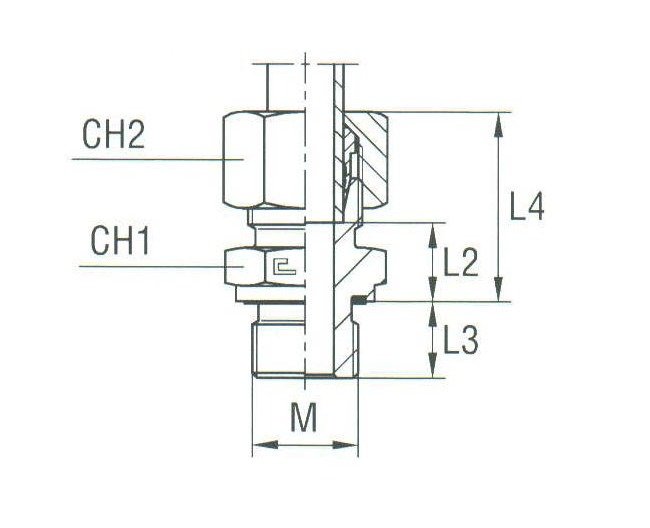

The Stainless Steel Male Stud Coupling with Elastomer Seal is designed for light-duty applications with a tube diameter of 10.0 mm and an M-thread size of 18x1.5. This coupling operates at a nominal pressure of 315 bar, meeting DIN 2353 standards. Its compact design with dimensions L2: 12.5 mm, L3: 12.0 mm, and L4: 27.5 mm ensures secure connections with CH1: 24 mm and CH2: 19.0 mm. Suitable for straight male stud coupling applications.

Product Specifications

Specifications Ch1

24 mm

Specifications Ch2

19.0 mm

Specifications L2

12.5 mm

Specifications L3

12.0 mm

Specifications L4

27.5 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

18x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

10.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread Metric Parallel
