Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel, DIN 2353 Compliant
Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel, DIN 2353 Compliant
SKU:FIT-d36b21
Reliable Stainless Steel Male Stud Coupling for light-duty applications, DIN 2353 compliant, 18.0mm tube diameter, 315 bar pressure.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel, DIN 2353 Compliant
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel, DIN 2353 Compliant
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling with Elastomer Seal offers reliability and durability for light-duty applications. Crafted from high-grade stainless steel, this fitting features a tube diameter of 18.0mm and a pressure rating of 315 bar. With precise DIN 2353 compliance, it ensures secure connections and efficient performance. The elastomer seal enhances sealing properties, while the metric parallel threading simplifies installation. Meet your fluid system needs with this precision-engineered coupling.

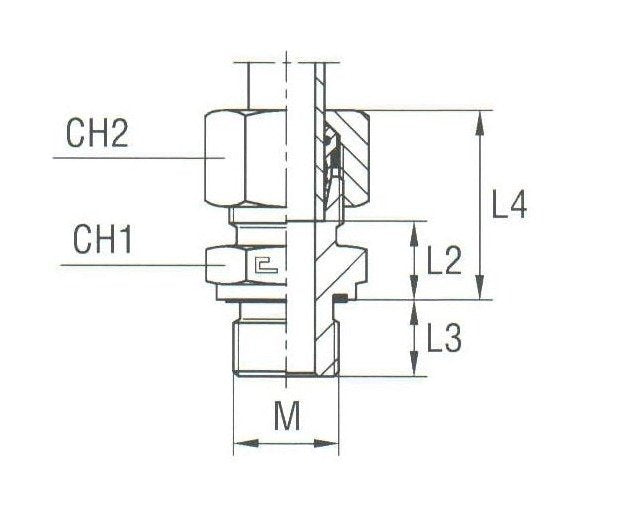

Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
32 mm
Specifications L2
14.0 mm
Specifications L3
12.0 mm
Specifications L4
30.5 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
18x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
18.0 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread Metric Parallel
