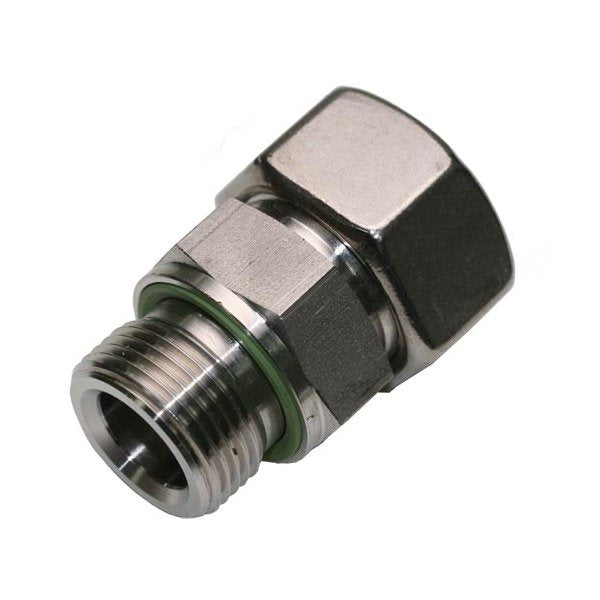

Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel (Pressure: Light Duty)

Name: Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel (Pressure: Light Duty)
Brand: World Wide Metric, Inc.
SKU: FIT-77f0d2
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-77f0d2

Stainless Steel Male Stud Coupling - Designed for light-duty applications, meets DIN 2353 standards with 315 bar nominal operating pressure.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

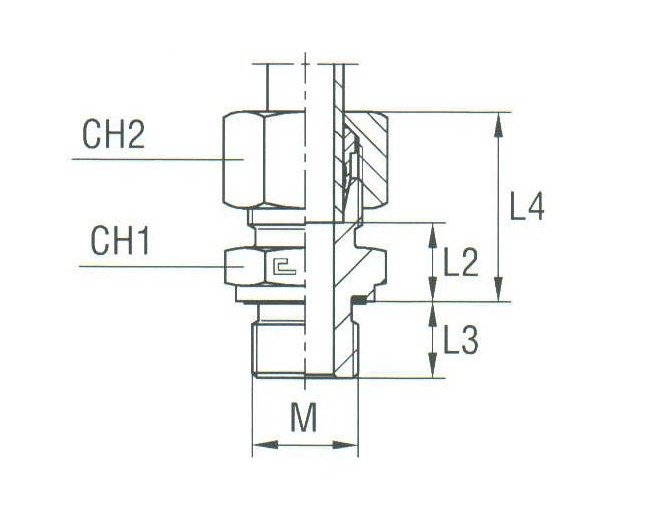

The Stainless Steel Male Stud Coupling with Elastomer Seal is designed for light-duty applications, with a tube diameter of 10.0mm and a M-thread size of 22x1.5. This coupling, meeting DIN 2353 standards, offers a nominal operating pressure of 315 bar, ensuring reliable performance under pressure. With precise measurements including L2: 14.0mm, L3: 14.0mm, L4: 29mm, CH1: 27mm, and CH2: 19.0mm, this coupling provides a secure and leak-free connection.

Product Specifications

Specifications Ch1

27 mm

Specifications Ch2

19.0 mm

Specifications L2

14.0 mm

Specifications L3

14.0 mm

Specifications L4

29 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

10.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread Metric Parallel

Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel (Pressure: Light Duty)
