Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel Thread

Name: Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel Thread
Brand: World Wide Metric, Inc.
SKU: FIT-3df1b0
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-3df1b0

Durable Stainless Steel Male Stud Coupling with Elastomer Seal for light-duty applications. Meets DIN 2353 standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

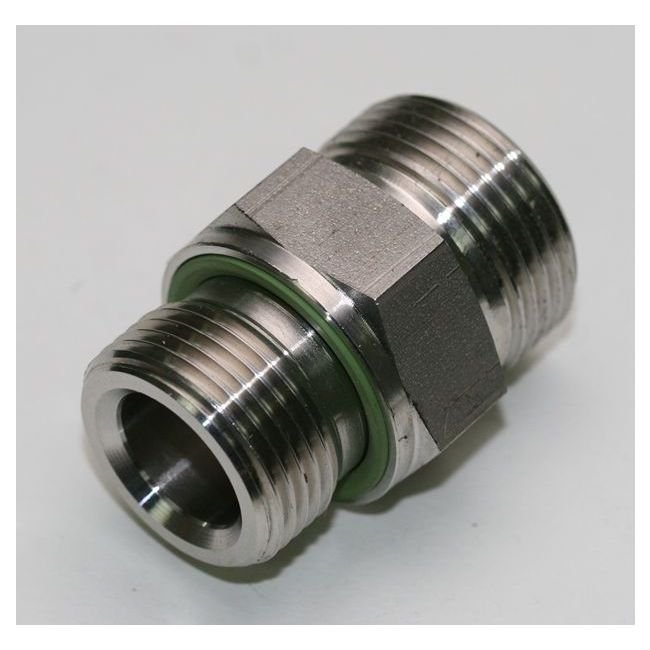

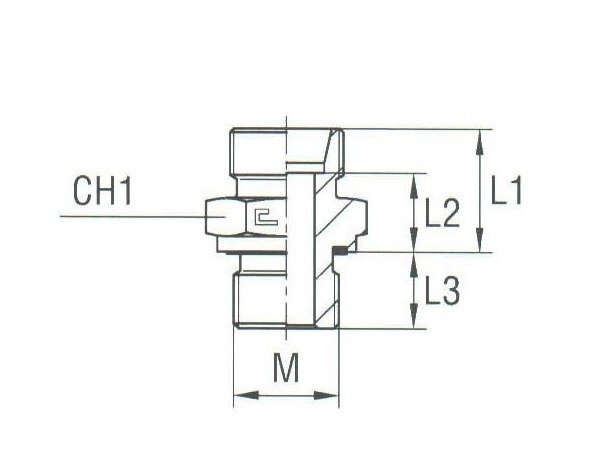

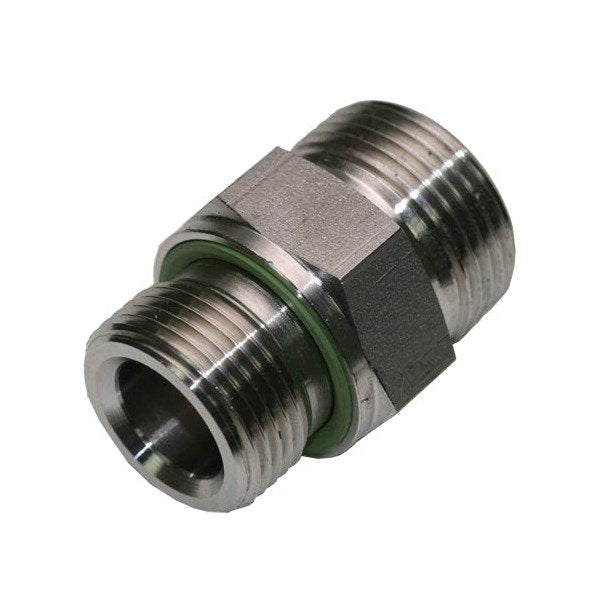

The Stainless Steel Male Stud Coupling with Elastomer Seal features a durable design suitable for light-duty applications. Made from high-quality stainless steel, it ensures reliability and longevity. With a tube diameter of 12.0 mm and a M-thread size of 22x1.5, this coupling can withstand a nominal operating pressure of 315 bar, meeting DIN 2353 standards. Its compact dimensions, including L1: 21.0 mm, L2: 14.0 mm, and L3: 14.0 mm, make it versatile for various industrial uses. The CH1 dimension of 27 mm provides ease of installation and maintenance, catering to institutional procurement needs.

Product Specifications

Specifications Ch1

27 mm

Specifications L1

21.0 mm

Specifications L2

14.0 mm

Specifications L3

14.0 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread Metric Parallel
