Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel Thread

Name: Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel Thread
Brand: World Wide Metric, Inc.
SKU: FIT-4e05e9
Price: 34.99 USD
Availability: OutOfStock

SKU:FIT-4e05e9

Heavy-duty stainless steel male stud coupling with elastomer seal, DIN 2353 compliant, for secure and reliable connections.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

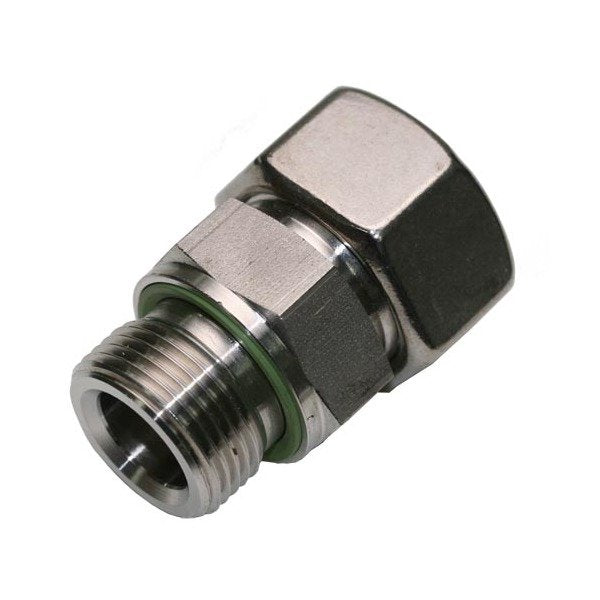

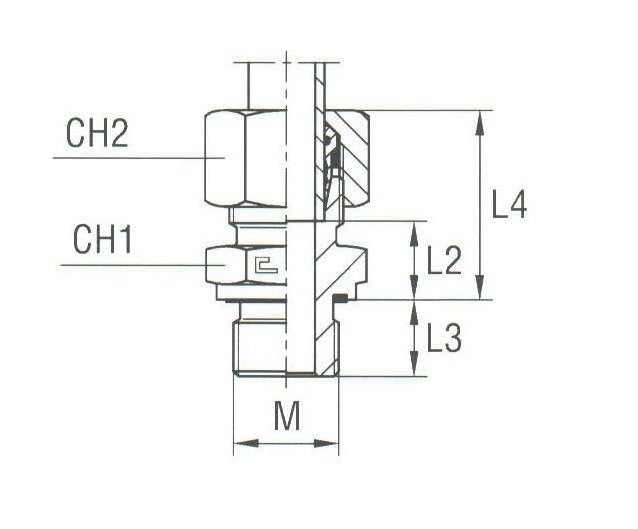

The Stainless Steel Male Stud Coupling with Elastomer Seal offers heavy-duty performance with a pressure rating of 630 bar. Constructed from durable stainless steel, this fitting features a M-Thread size of 20x1.5, making it suitable for a tube diameter of 14.0 mm. Compliant with DIN 2353 standards, it ensures reliable and secure connections. With precise dimensions including L2: 19.0 mm, L3: 14.0 mm, L4: 37.0 mm, CH1: 27 mm, and CH2: 27 mm, this coupling is ideal for various industrial applications.

Product Specifications

Specifications Ch1

27 mm

Specifications Ch2

27 mm

Specifications L2

19.0 mm

Specifications L3

14.0 mm

Specifications L4

37.0 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

20x1.5

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

14.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread Metric Parallel

Stainless Steel Male Stud Coupling with Elastomer Seal - Metric Parallel Thread
