Stainless Steel Male Stud Coupling with O-Ring (6.0mm, 100 Bar, Metric Parallel)

Name: Stainless Steel Male Stud Coupling with O-Ring (6.0mm, 100 Bar, Metric Parallel)
Brand: World Wide Metric, Inc.
SKU: FIT-5bebc2
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-5bebc2

Durable Stainless Steel Male Stud Coupling with O-Ring for secure, leak-free connections (6.0mm, 100 Bar, Metric Parallel)

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Male Stud Coupling with O-Ring and Washer offers durability and reliability in fluid systems. Designed to withstand extra light duty pressure, this fitting is constructed from high-grade stainless steel, ensuring longevity and resistance to corrosion. With a tube diameter of 6.0mm and meeting DIN 2353 standards, this coupling guarantees a secure and leak-free connection. The inclusion of an O-Ring enhances sealing performance, while the metric parallel thread size of 10x1 ensures compatibility with a wide range of components.

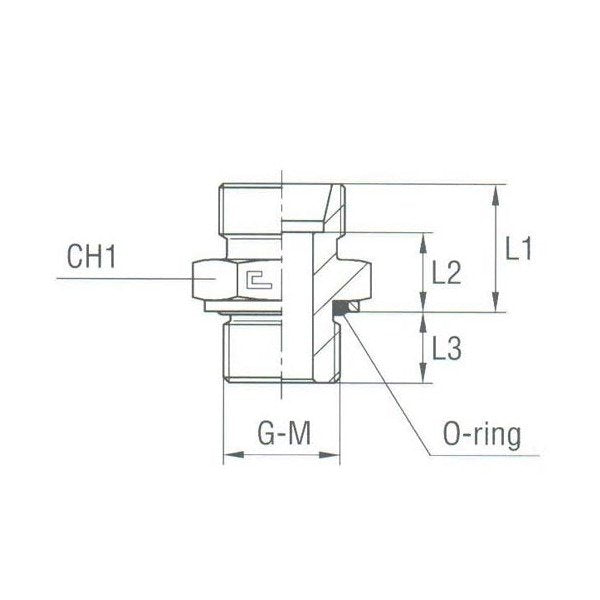

Product Specifications

Specifications Ch1

14 mm

Specifications L1

13.5 mm

Specifications L2

8.0 mm

Specifications L3

7.5 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

10x1

Specifications Nominal Operating Pressure

100 bar

Specifications Pressure

Extra Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

6.0 mm

Category 6

Male Stud Coupling with O-Ring and Washer Thread Metric Parallel
