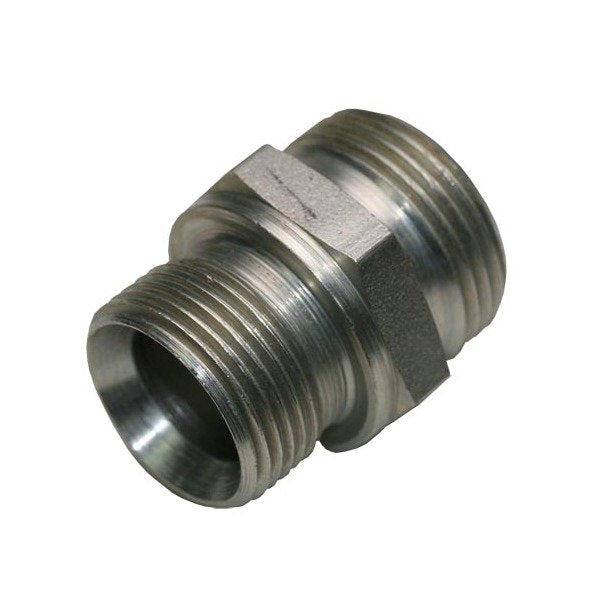

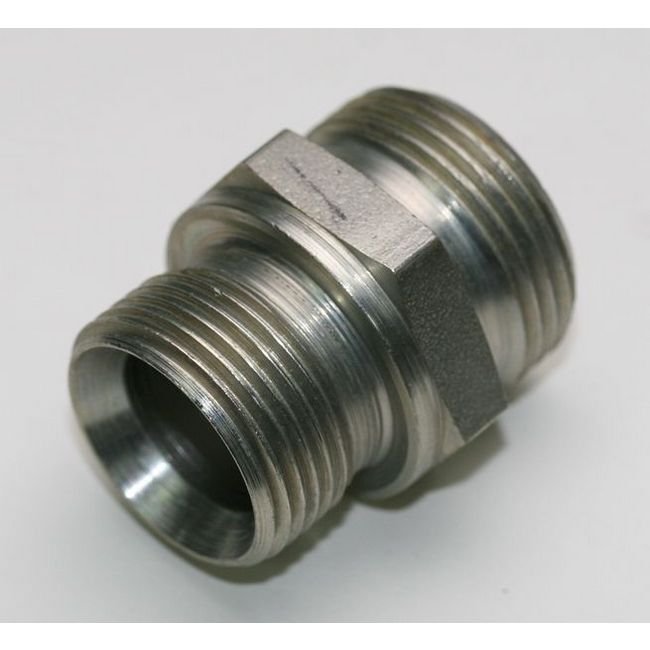

Stainless Steel Male Stud Coupling with O-Ring BSP Parallel

Name: Stainless Steel Male Stud Coupling with O-Ring BSP Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-15ccc9
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-15ccc9

Premium Stainless Steel Male Stud Coupling with O-Ring for reliable hydraulic connections. DIN 2353 compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Male Stud Coupling with O-Ring BSP Parallel is designed for light-duty applications with a nominal operating pressure of 315 bar. Crafted with high-quality stainless steel, this coupling ensures durability and reliability. With precise tube diameter of 8.0mm, and meeting DIN 2353 standards, it guarantees secure connections. The inclusion of an O-Ring and Washer Thread BSP Parallel enhances sealing, making it ideal for various hydraulic systems.

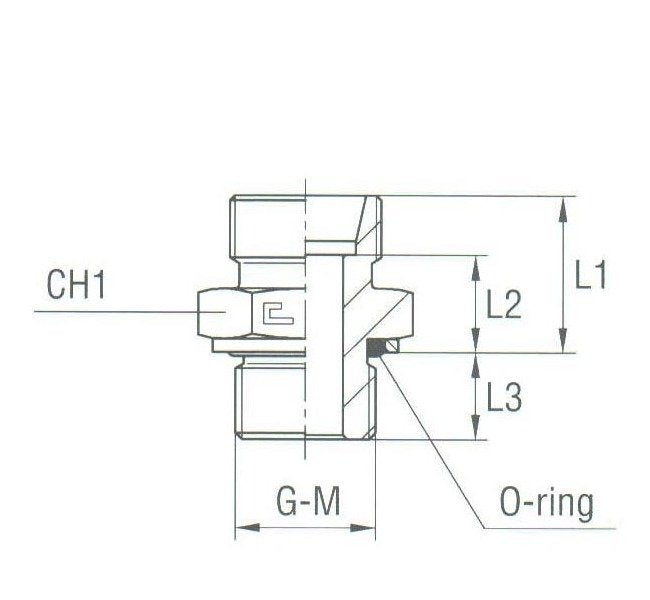

Product Specifications

Specifications Ch1

19.0 mm

Specifications G Thread Size

1/4

Specifications L1

16.8 mm

Specifications L2

9.8 mm

Specifications L3

10.2 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm

Category 6

Male Stud Coupling with O-Ring and Washer Thread BSP Parallel
