Stainless Steel Male Stud Coupling with O-Ring, BSP Parallel - Heavy Duty

Name: Stainless Steel Male Stud Coupling with O-Ring, BSP Parallel - Heavy Duty
Brand: World Wide Metric, Inc.
SKU: FIT-8cb84a
Price: 34.99 USD
Availability: OutOfStock

SKU:FIT-8cb84a

High-pressure Stainless Steel Male Stud Coupling with O-Ring for reliable, leak-free connections in industrial settings.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Male Stud Coupling with O-Ring and Washer Thread BSP Parallel - Equipped B4 Ring is a heavy-duty fitting designed for high-pressure systems with a nominal operating pressure of 280 bar. Crafted from durable stainless steel, it features a Tube Diameter of 30.0 mm and a G - Thread Size of 1 1/4, ensuring robust performance in demanding environments. With elastomeric Viton seals and compliance with DIN 2353 standards, this coupling guarantees reliability and leak-free connections, making it ideal for industrial applications.

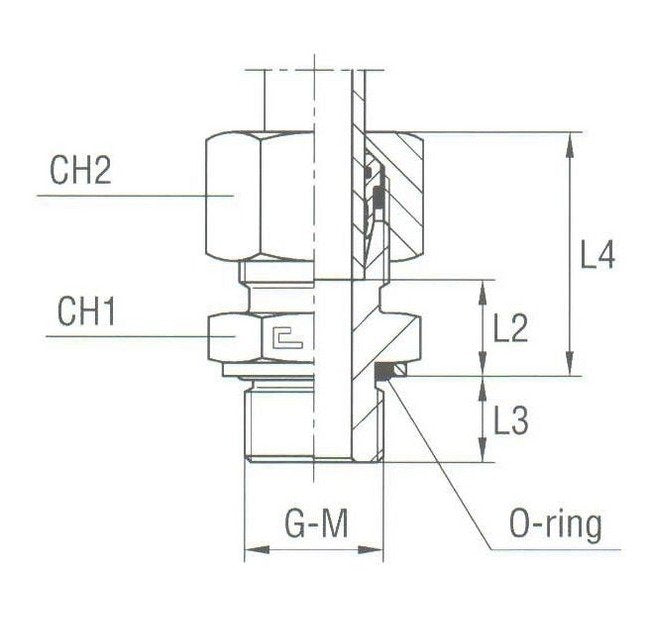

Product Specifications

Specifications Ch1

50 mm

Specifications Ch2

50 mm

Specifications G Thread Size

1 1/4

Specifications L2

23.6 mm

Specifications L3

17.4 mm

Specifications L4

50.1 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

280 bar

Specifications Pressure

Heavy Duty

Specifications Sealing

Elastometric Viton Seal

Specifications Standards

DIN 2353

Specifications Tube Diameter

30.0 mm

Category 6

Male Stud Coupling with O-Ring and Washer Thread BSP Parallel

Stainless Steel Male Stud Coupling with O-Ring, BSP Parallel - Heavy Duty
