Stainless Steel Male Stud Coupling with O-Ring - DIN 2353 Compression Fitting

Name: Stainless Steel Male Stud Coupling with O-Ring - DIN 2353 Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-6d503d
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-6d503d

High-quality Stainless Steel Male Stud Coupling with O-Ring for heavy-duty industrial use. DIN 2353 compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Male Stud Coupling with O-Ring and Washer Thread Metric Parallel is a heavy-duty fitting designed for industrial applications. Made of high-quality stainless steel, this coupling ensures durability and corrosion resistance. With a tube diameter of 12.0mm and a nominal operating pressure of 315 bar, it meets stringent DIN 2353 standards. The innovative design includes an Equipped B3 Ring for enhanced performance and reliability.

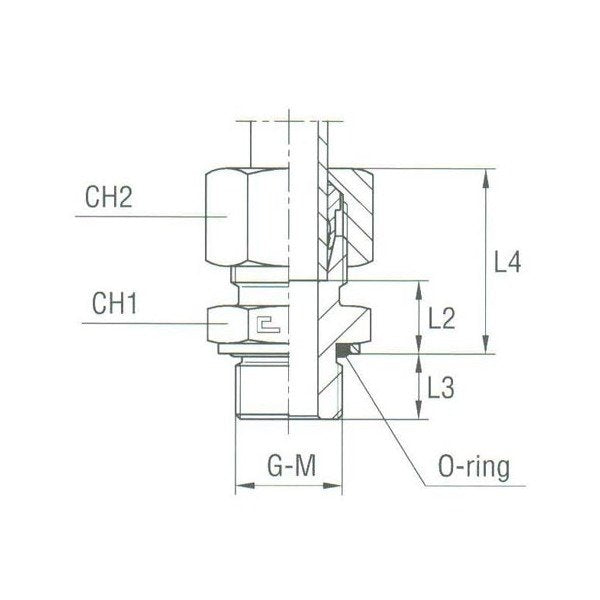

Product Specifications

Specifications Ch1

24 mm

Specifications Ch2

24 mm

Specifications L2

16.9 mm

Specifications L3

12.6 mm

Specifications L4

32.9 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

18x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm

Category 6

Male Stud Coupling with O-Ring and Washer Thread Metric Parallel

Stainless Steel Male Stud Coupling with O-Ring - DIN 2353 Compression Fitting
