Stainless Steel Male Stud Coupling with O-Ring - DIN 2353 Compression Fitting

Name: Stainless Steel Male Stud Coupling with O-Ring - DIN 2353 Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-100026
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-100026

High-quality Stainless Steel Male Stud Coupling with O-Ring for heavy-duty industrial use. DIN 2353 compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

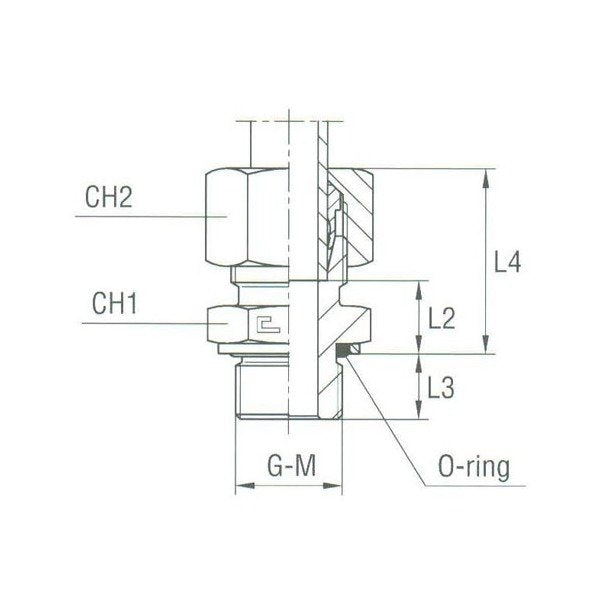

The Stainless Steel Male Stud Coupling with O-Ring and Washer Thread is a heavy-duty fitting designed for industrial applications. Made of high-quality stainless steel, this coupling ensures durability and resistance to corrosion. With a tube diameter of 6.0mm and a nominal operating pressure of 400 bar, it meets the stringent standards of DIN 2353. The precise dimensions of L2, L3, L4, CH1, and CH2 guarantee a secure and leak-free connection.

Product Specifications

Specifications Ch1

17.0 mm

Specifications Ch2

17.0 mm

Specifications L2

12.9 mm

Specifications L3

9.6 mm

Specifications L4

27.9 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

12x1.5

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

6.0 mm

Category 6

Male Stud Coupling with O-Ring and Washer Thread Metric Parallel

Stainless Steel Male Stud Coupling with O-Ring - DIN 2353 Compression Fitting
