Stainless Steel Male Stud Coupling with O-Ring, Metric Parallel - Body Only
Stainless Steel Male Stud Coupling with O-Ring, Metric Parallel - Body Only
SKU:FIT-837729
Durable Stainless Steel Male Stud Coupling for Light-Duty Applications - DIN 2353 Compliant
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling with O-Ring, Metric Parallel - Body Only
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling with O-Ring, Metric Parallel - Body Only
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling with O-Ring and Washer Thread Metric Parallel - Body Only is designed for light-duty applications with a nominal operating pressure of 160 bar. Constructed from durable stainless steel, this coupling features a tube diameter of 35.0mm and an M-thread size of 42x2. It conforms to DIN 2353 standards, ensuring reliability and quality for various industrial settings.

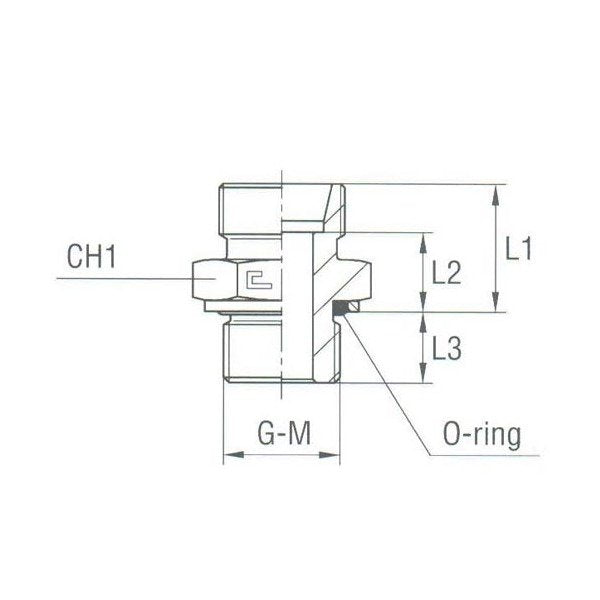

Product Specifications
Specifications Ch1
50 mm
Specifications L1
28 mm
Specifications L2
17.5 mm
Specifications L3
17.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
42x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
35.0 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread Metric Parallel
