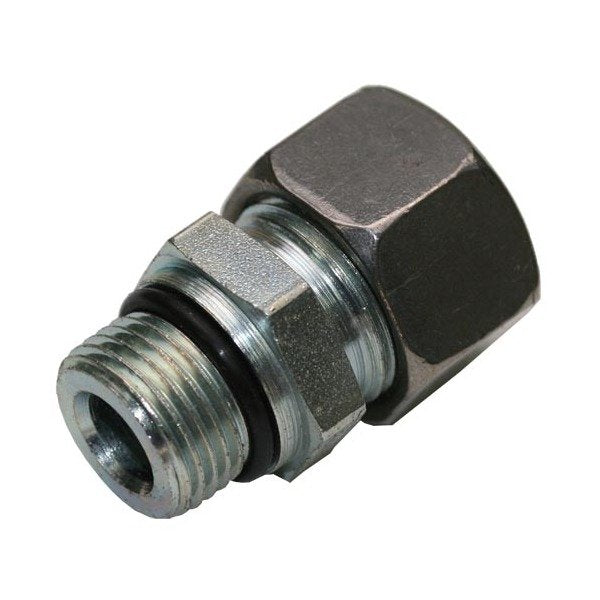

Stainless Steel Male Stud Coupling with O-Ring Thread

Name: Stainless Steel Male Stud Coupling with O-Ring Thread
Brand: World Wide Metric, Inc.
SKU: FIT-5e0631
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-5e0631

Stainless Steel Male Stud Coupling for light-duty applications, 22mm tube diameter, DIN 2353 compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A - Equipped B3 Ring is designed for light-duty applications with a nominal operating pressure of 160 bar. Made from high-quality stainless steel, this coupling ensures durability and resistance to corrosion. With a tube diameter of 22mm and DIN 2353 compliance, it offers reliable performance in various industrial settings. The precision engineering of this coupling includes specific measurements such as L2: 17.4 mm, L3: 15.1 mm, and CH1: 41 mm, meeting stringent quality standards.

Product Specifications

Specifications Ch1

41 mm

Specifications Ch2

36 mm

Specifications D1

40.8 mm

Specifications L2

17.4 mm

Specifications L3

15.1 mm

Specifications L4

34 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

22 mm

Specifications W Thread Size

1 5/16-12

Stainless Steel Male Stud Coupling with O-Ring Thread
