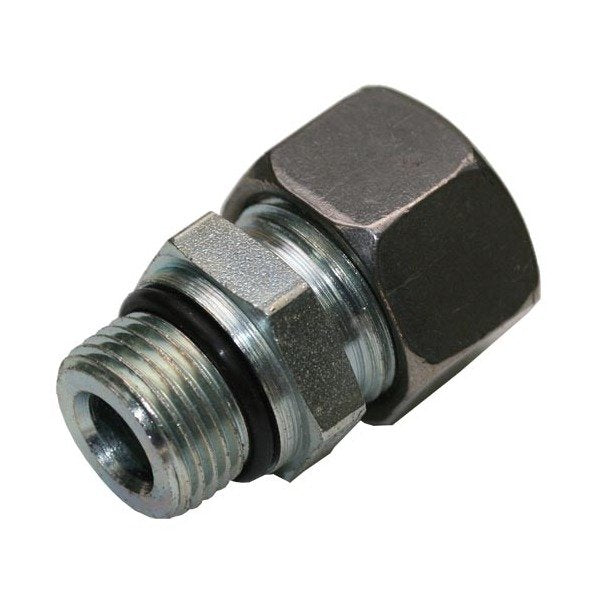

Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A

Name: Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
Brand: World Wide Metric, Inc.
SKU: FIT-b1c69c
Price: 25.99 USD
Availability: OutOfStock

SKU:FIT-b1c69c

Durable stainless steel Male Stud Coupling meeting DIN 2353 standards for secure connections in hydraulic systems.

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A is engineered for light-duty applications, meeting DIN 2353 standards. Crafted from durable stainless steel, this coupling ensures a secure connection with a tube diameter of 12.0mm and a nominal operating pressure of 315 bar. With precise dimensions of L2: 11.0mm, L3: 10mm, L4: 25.5mm, CH1: 19.0mm, and CH2: 22mm, it guarantees reliability and longevity in hydraulic systems.

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

22 mm

Specifications D1

18.8 mm

Specifications L2

11.0 mm

Specifications L3

10 mm

Specifications L4

25.5 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm

Specifications W Thread Size

9/16-18
