Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
SKU:FIT-1522c6
High-quality Stainless Steel Male Stud Coupling for secure hydraulic connections, DIN 2353 compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A - Equipped B3 Ring is designed for light duty applications with a pressure rating of 160 bar. Constructed from durable stainless steel, it ensures reliability and longevity. Featuring a tube diameter of 28mm and meeting DIN 2353 standards, this coupling provides a secure and leak-free connection. With precise dimensions and quality materials, it offers a robust solution for hydraulic systems.

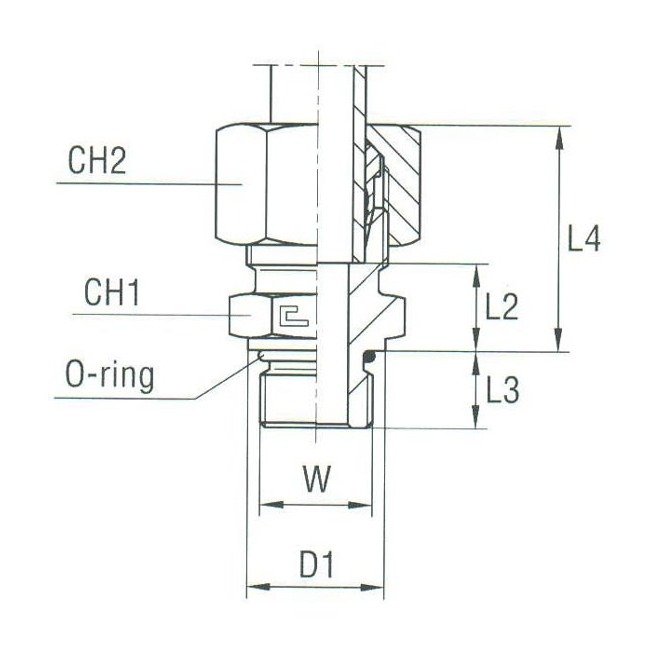

Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
41 mm
Specifications D1
40.8 mm
Specifications L2
17.4 mm
Specifications L3
15.1 mm
Specifications L4
34 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
28 mm
Specifications W Thread Size
1 5/16-12
