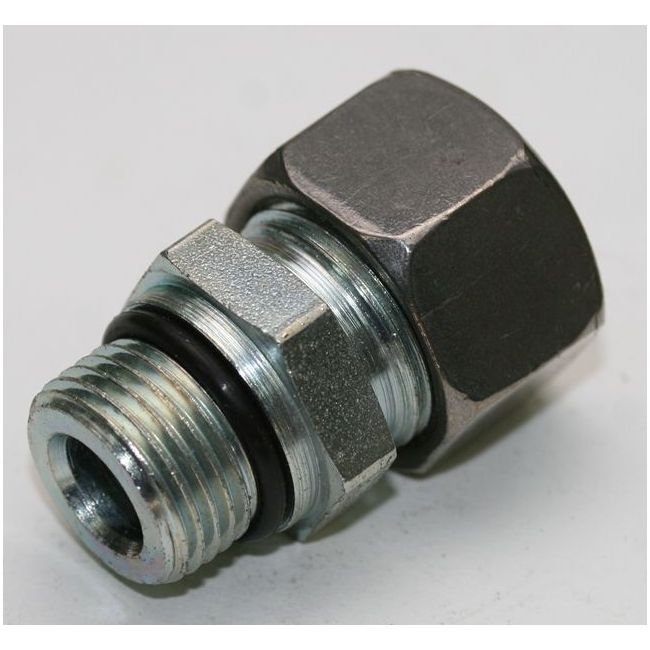

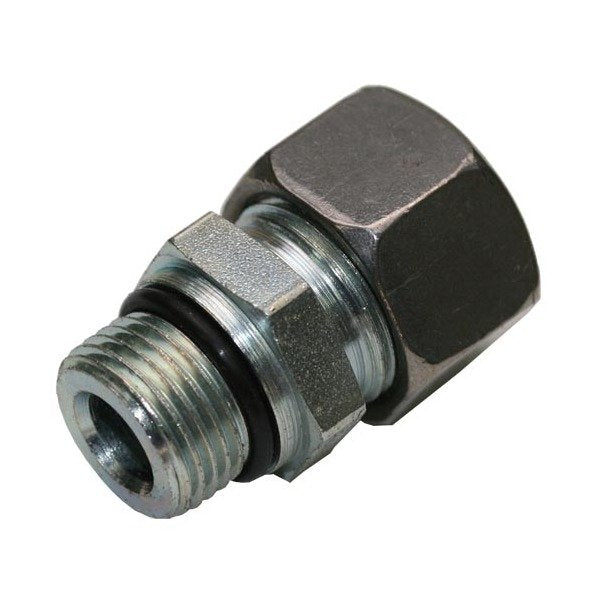

Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
SKU:FIT-7174dc
Durable stainless steel male stud coupling for secure, leak-free connections in light-duty applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A is designed for light-duty applications, with a tube diameter of 35.0mm and a maximum operating pressure of 160 bar. Crafted from high-quality stainless steel, this fitting ensures durability and reliability. Meeting DIN 2353 standards, it offers precise engineering for secure connections. The equipped B3 ring provides enhanced sealing for leak-free performance.

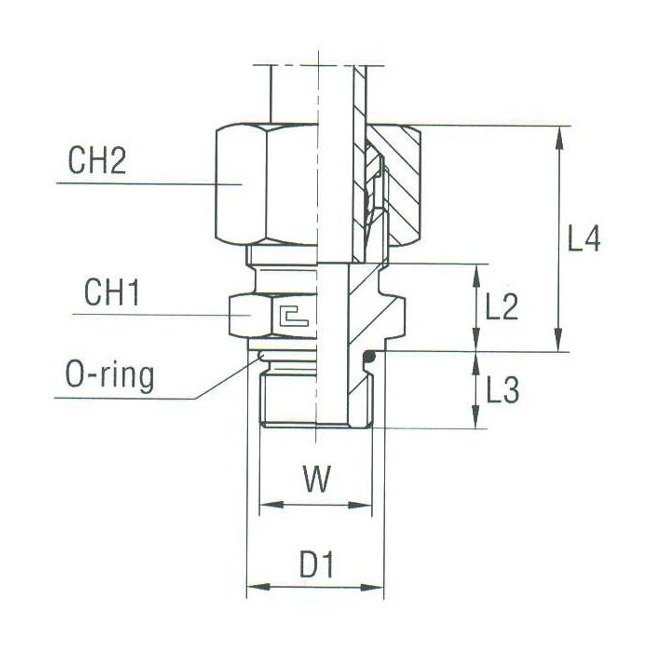

Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
50 mm
Specifications D1
49.8 mm
Specifications L2
17.4 mm
Specifications L3
15.1 mm
Specifications L4
39.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
35.0 mm
Specifications W Thread Size
1 5/8-12
