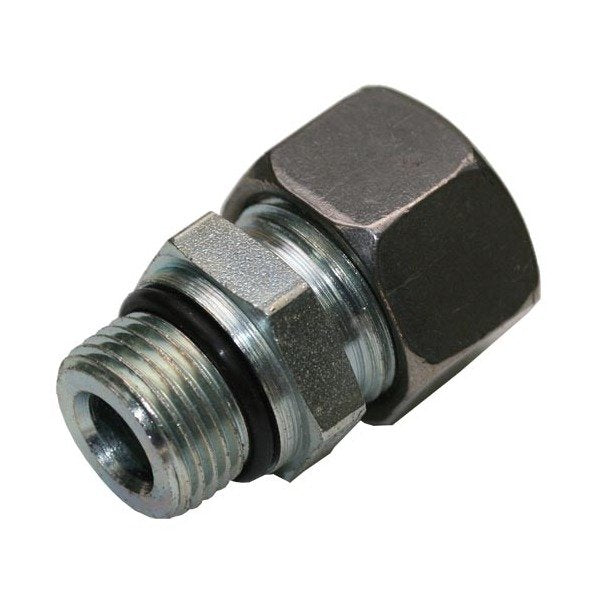

Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A

Name: Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
Brand: World Wide Metric, Inc.
SKU: FIT-54b10d
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-54b10d

Get reliable, high-performance stainless steel male stud coupling for hydraulic systems. Meet DIN 2353 standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A - Equipped B3 Ring is designed for light-duty applications with a nominal operating pressure of 315 bar. Made from high-quality stainless steel, this fitting ensures durability and reliability. Featuring a tube diameter of 8.0mm and meeting DIN 2353 standards, it guarantees precise and secure connections. With dimensions L2: 9.9mm, L3: 9.1mm, L4: 25.0mm, CH1: 14mm, and CH2: 17.0mm, this male stud coupling is engineered for optimal performance in various hydraulic systems.

Product Specifications

Specifications Ch1

14 mm

Specifications Ch2

17.0 mm

Specifications D1

13.8 mm

Specifications L2

9.9 mm

Specifications L3

9.1 mm

Specifications L4

25.0 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm

Specifications W Thread Size

7/16-20
