Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
SKU:FIT-b01bdc
High-quality Stainless Steel Male Stud Coupling for heavy-duty industrial use. DIN 2353 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

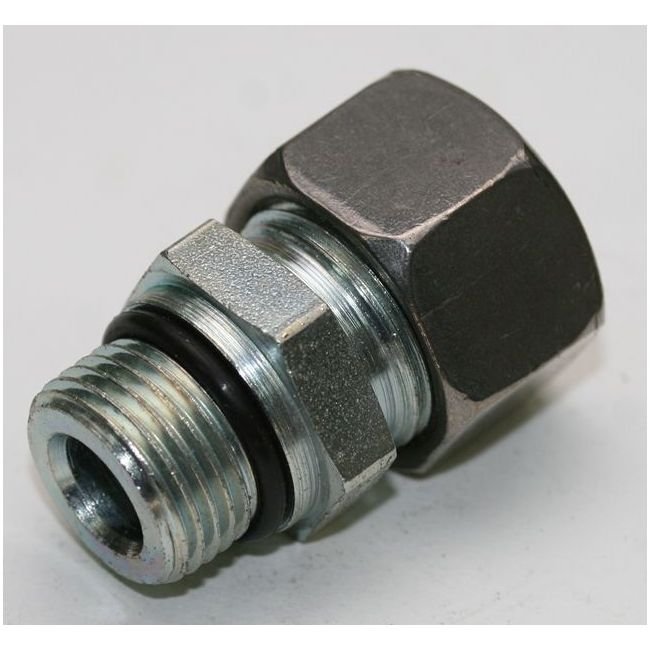

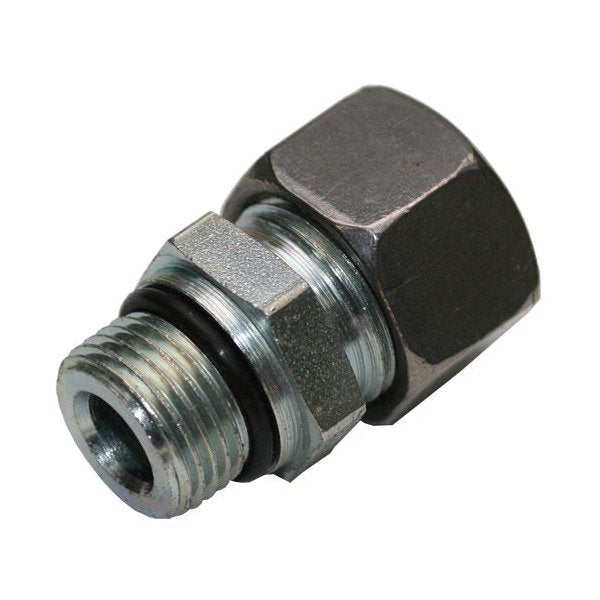

The Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A is designed for heavy-duty industrial applications, featuring a tube diameter of 20.0 mm and a maximum operating pressure of 400 bar. Crafted from high-quality stainless steel, this fitting ensures durability and reliability. Compliant with DIN 2353 standards, it offers precise and secure connections, making it ideal for hydraulic systems in both commercial and government facilities.
Ready to Grow Without Cash Flow Constraints?

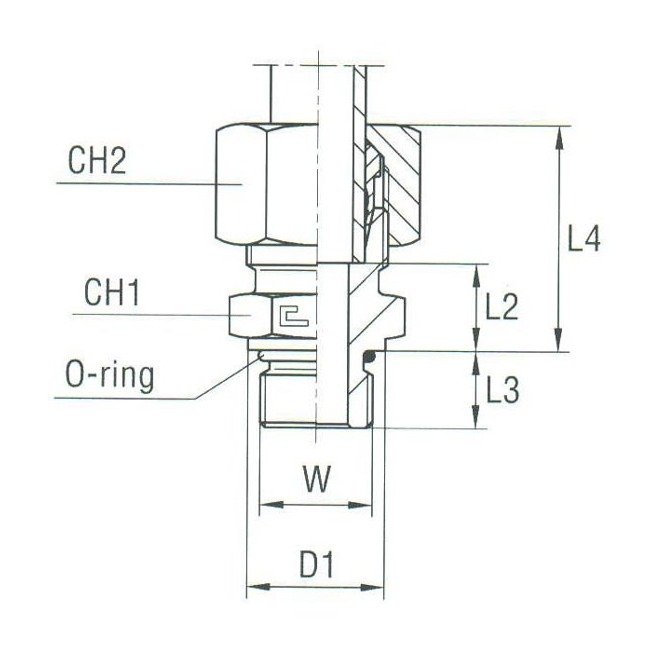

Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
36 mm
Specifications D1
26.8 mm
Specifications L2
20.8 mm
Specifications L3
12.7 mm
Specifications L4
42.5 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
20.0 mm
Specifications W Thread Size
7/8-14
