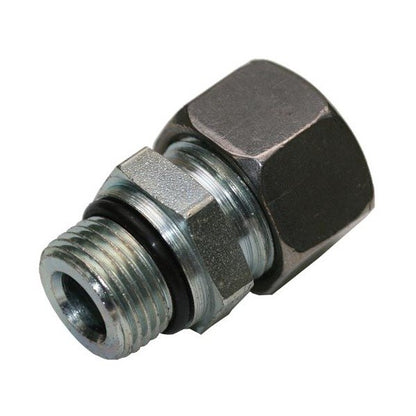

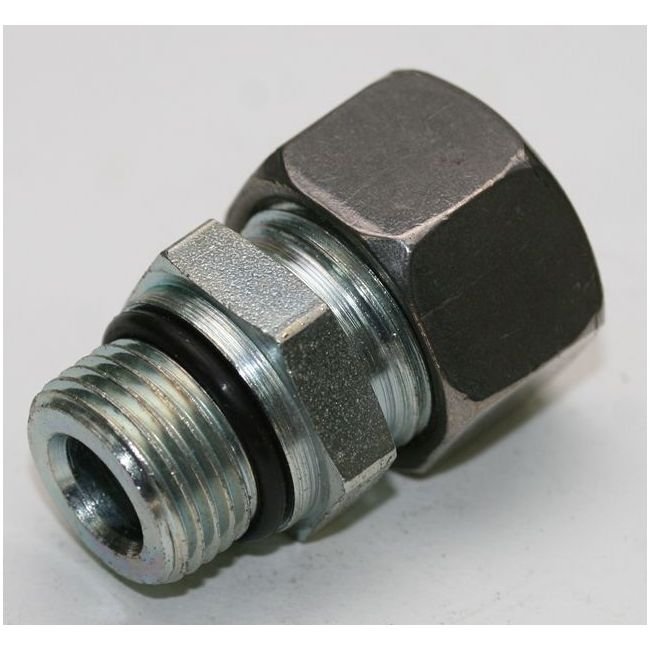

Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
SKU:FIT-44a4d6
Durable Stainless Steel Male Stud Coupling for heavy-duty industrial use. Meets DIN 2353 standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
$39.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling features a Heavy-Duty design suitable for industrial applications. Made of high-quality stainless steel, this coupling ensures durability and corrosion resistance. With a Tube Diameter of 38.0 mm and a Nominal Operating Pressure of 315 bar, it meets DIN 2353 standards, guaranteeing reliable performance and longevity.

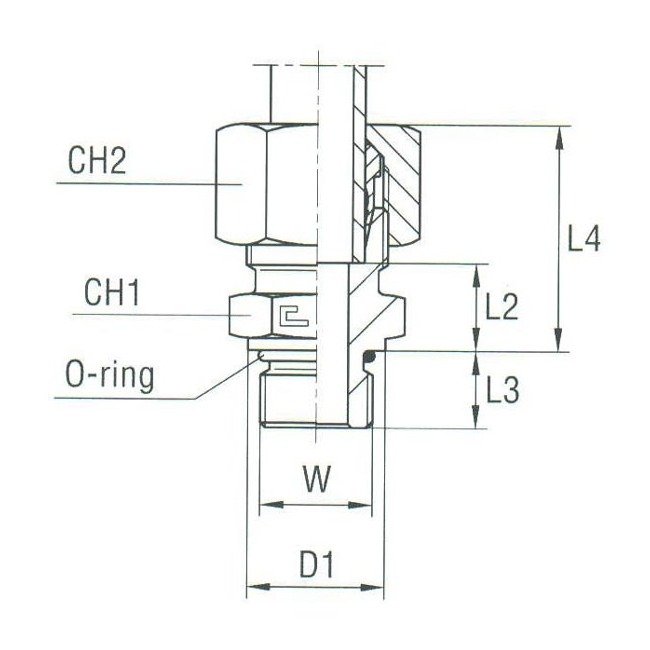

Product Specifications
Specifications Ch1
55 mm
Specifications Ch2
60 mm
Specifications D1
49.8 mm
Specifications L2
25.9 mm
Specifications L3
15.1 mm
Specifications L4
57 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
38.0 mm
Specifications W Thread Size
1 5/8-12
