Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A - 28mm Tube Diameter

Name: Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A - 28mm Tube Diameter
Brand: World Wide Metric, Inc.
SKU: FIT-a082fd
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-a082fd

Reliable stainless steel male stud coupling for light-duty applications. DIN 2353 compliant, with enhanced sealing for secure hydraulic connections.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Male Stud Coupling is designed for light-duty applications, featuring a durable construction that can withstand a nominal operating pressure of 160 bar. With a tube diameter of 28mm and conforming to DIN 2353 standards, this coupling ensures reliability and longevity. The equipped B3 ring enhances the sealing performance, making it ideal for a secure and leak-free connection in hydraulic systems.

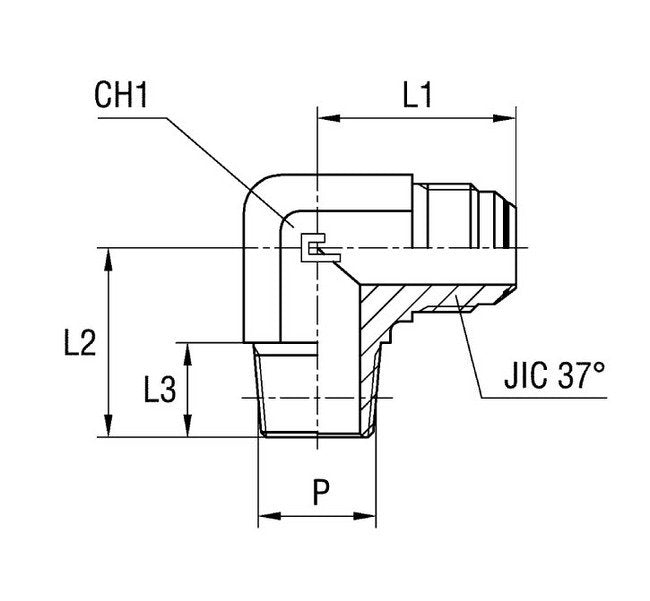

Product Specifications

Specifications Ch1

41 mm

Specifications Ch2

41 mm

Specifications D1

31.8 mm

Specifications L2

17.4 mm

Specifications L3

15.1 mm

Specifications L4

34 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

28 mm

Specifications W Thread Size

1 1/16-12
