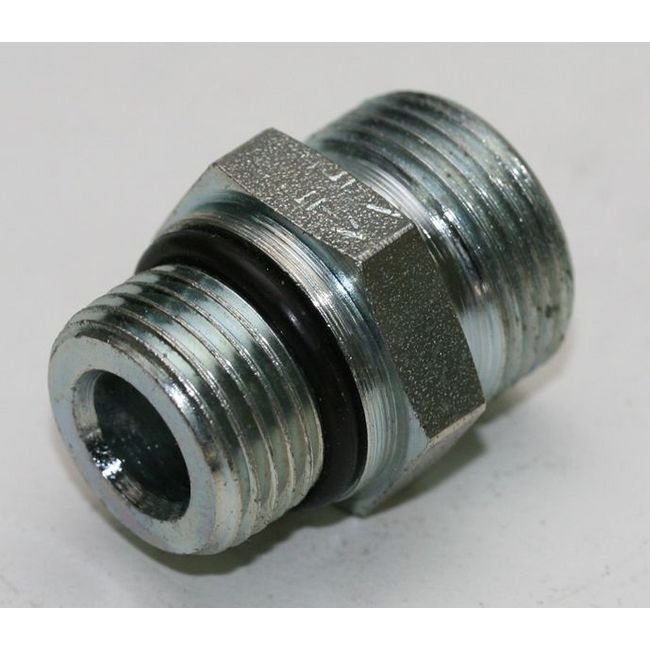

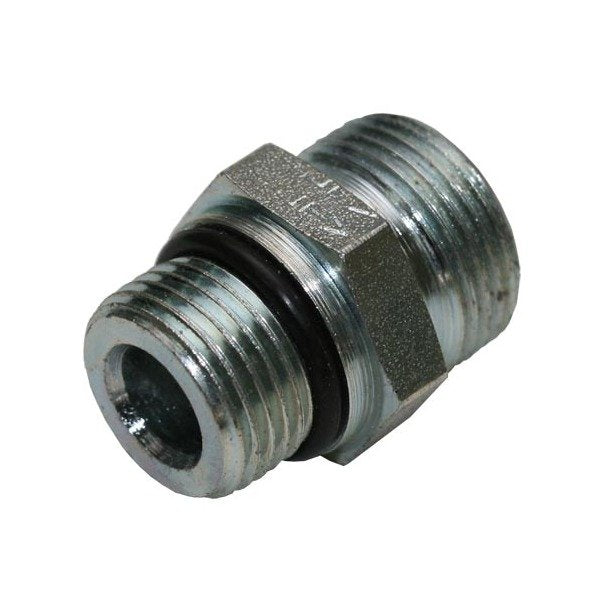

Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A - Body Only

Name: Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A - Body Only
Brand: World Wide Metric, Inc.
SKU: FIT-eeb5ab
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-eeb5ab

High-quality Stainless Steel Male Stud Coupling for reliable and durable hydraulic connections.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

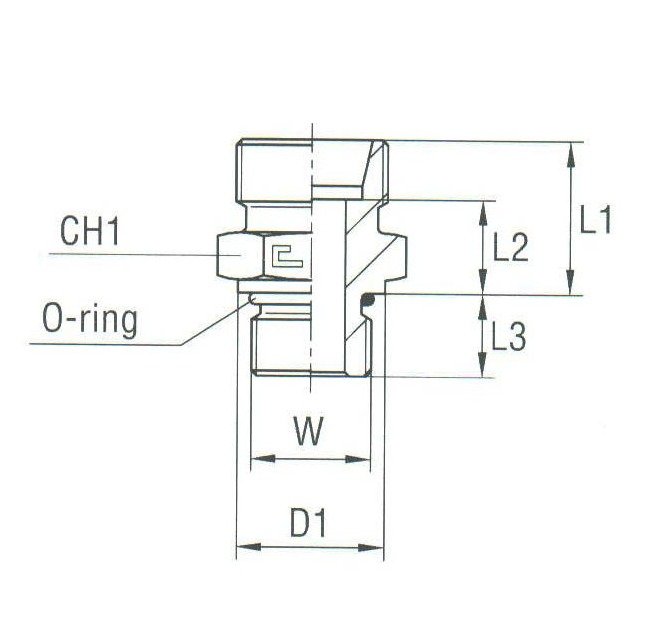

The Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A is designed for light-duty applications, featuring a tube diameter of 22mm and a nominal operating pressure of 160 bar. Meeting DIN 2353 standards, this coupling ensures reliability and durability. With key dimensions including L1: 23.9mm, L2: 16.4mm, L3: 15.1mm, CH1: 32mm, and D1: 31.8mm, this coupling offers precision and quality for various hydraulic systems.

Product Specifications

Specifications Ch1

32 mm

Specifications D1

31.8 mm

Specifications L1

23.9 mm

Specifications L2

16.4 mm

Specifications L3

15.1 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

22 mm

Specifications W Thread Size

1 1/16-12
