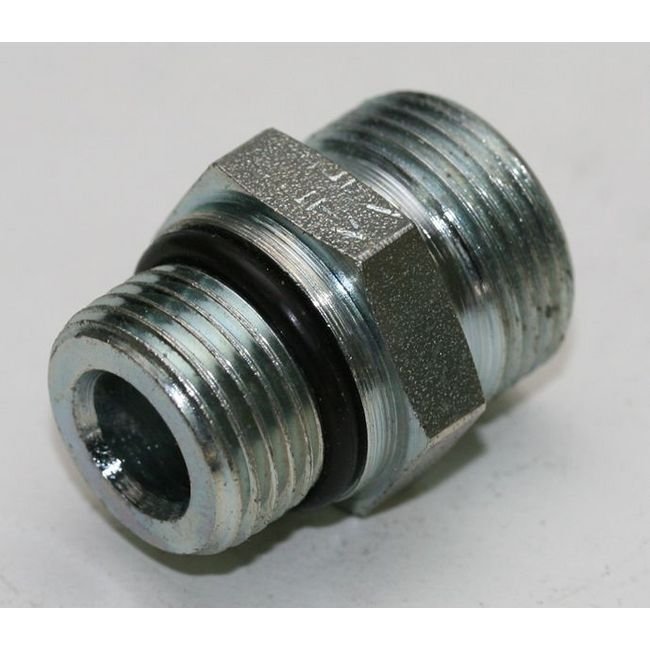

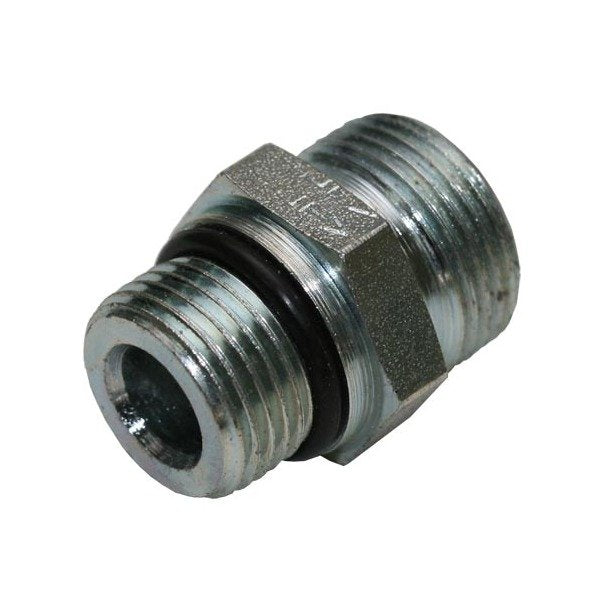

Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A - Body Only

Name: Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A - Body Only
Brand: World Wide Metric, Inc.
SKU: FIT-e56e53
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-e56e53

High-quality Stainless Steel Male Stud Coupling for light-duty applications. Compliant with DIN 2353 standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

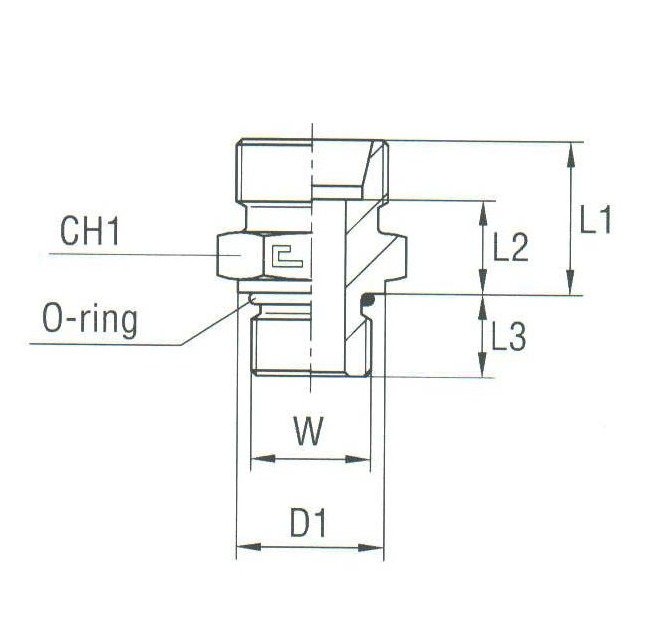

The Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A - Body Only is designed for light duty applications, featuring a tube diameter of 35.0 mm and a W-Thread Size of 1 5/8-12. With a nominal operating pressure of 160 bar, this coupling meets DIN 2353 standards. Its compact design with precise dimensions of L1: 27.9 mm, L2: 17.4 mm, and L3: 15.1 mm ensures reliable performance. The CH1 dimension of 50 mm and D1 dimension of 49.8 mm provide stability and ease of installation, making it an ideal choice for institutional and government procurement needs.

Product Specifications

Specifications Ch1

50 mm

Specifications D1

49.8 mm

Specifications L1

27.9 mm

Specifications L2

17.4 mm

Specifications L3

15.1 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

35.0 mm

Specifications W Thread Size

1 5/8-12
