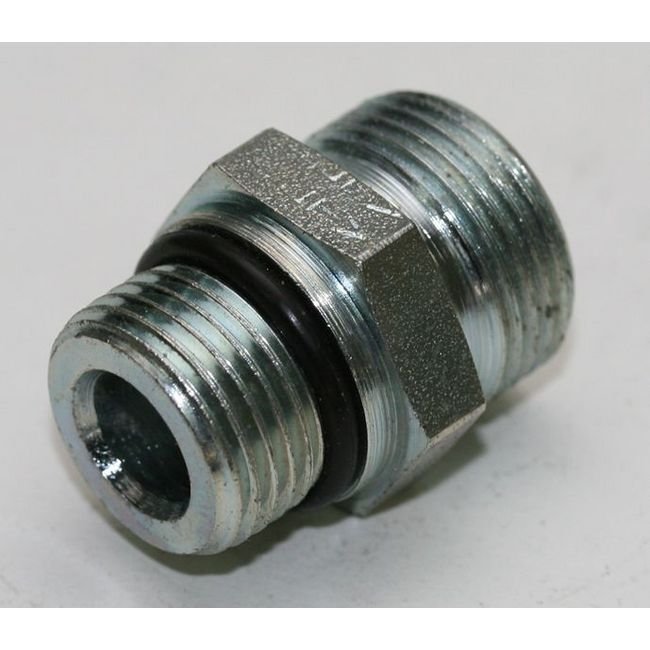

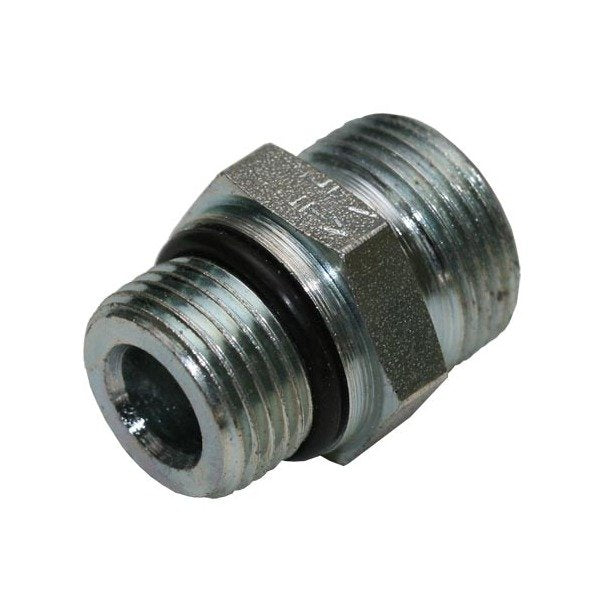

Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A - Body Only

Name: Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A - Body Only
Brand: World Wide Metric, Inc.
SKU: FIT-68315c
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-68315c

High-pressure Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A, DIN 2353 compliant

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A is designed for heavy-duty applications, with a tube diameter of 20.0 mm and a 3/4-16 thread size. This straight male stud coupling meets DIN 2353 standards, ensuring reliable performance at a nominal operating pressure of 400 bar. With precise dimensions and durable stainless steel construction, this fitting guarantees secure connections and long-lasting service life.

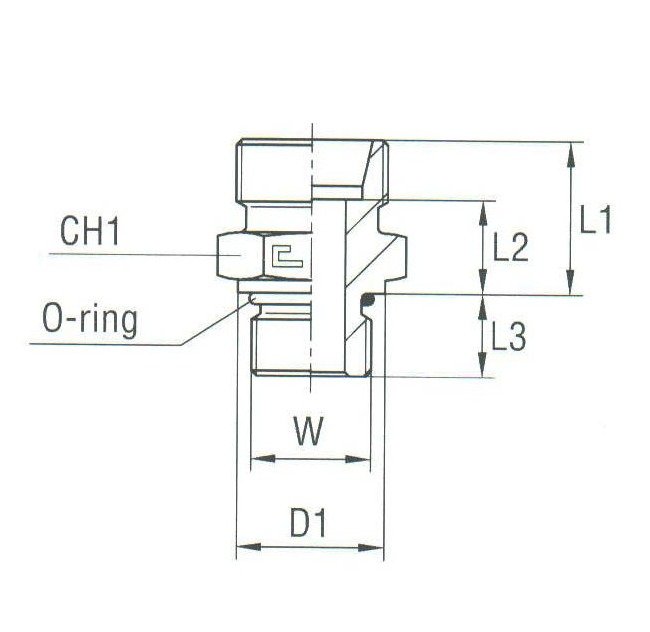

Product Specifications

Specifications Ch1

32 mm

Specifications D1

21.8 mm

Specifications L1

30.9 mm

Specifications L2

20.4 mm

Specifications L3

11.1 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

20.0 mm

Specifications W Thread Size

3/4-16

Stainless Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A - Body Only
