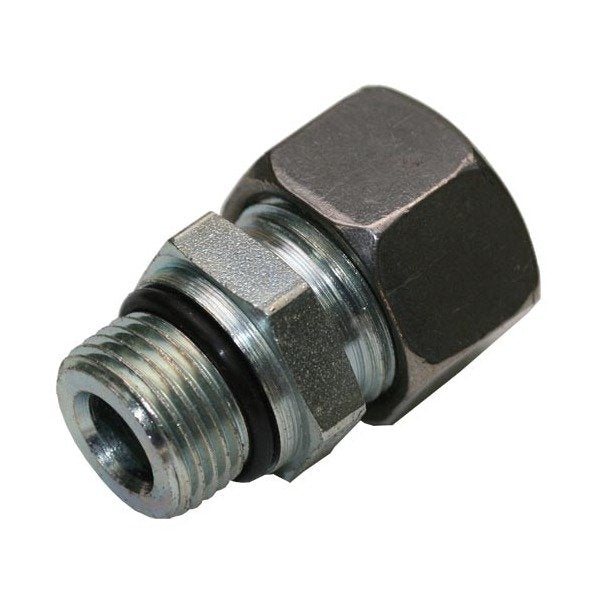

Stainless Steel Male Stud Coupling with O-Ring - UNF/UN-2A, Fully Equipped with B3 Ring

Name: Stainless Steel Male Stud Coupling with O-Ring - UNF/UN-2A, Fully Equipped with B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-f76691
Price: 34.99 USD
Availability: OutOfStock

SKU:FIT-f76691

Premium Stainless Steel Male Stud Coupling with O-Ring, DIN 2353 Compliant, 12.0 mm Tube, 315 bar pressure

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Male Stud Coupling with O-Ring is designed for light duty applications, with a tube diameter of 12.0 mm and a pressure rating of 315 bar. Made to meet DIN 2353 standards, this coupling features a thread size of 7/8-14 and precise dimensions including L2: 14.3 mm, L3: 12.7 mm, L4: 29 mm, CH1: 27 mm, CH2: 22 mm, and D1: 26.8 mm. Ensure leak-free connections and reliability with this high-quality coupling.

Product Specifications

Specifications Ch1

27 mm

Specifications Ch2

22 mm

Specifications D1

26.8 mm

Specifications L2

14.3 mm

Specifications L3

12.7 mm

Specifications L4

29 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm

Specifications W Thread Size

7/8-14
