Stainless Steel Male Stud Coupling with O-Ring, Washer, and Metric Parallel Thread Body - DIN 2353 Compliant
Stainless Steel Male Stud Coupling with O-Ring, Washer, and Metric Parallel Thread Body - DIN 2353 Compliant
SKU:FIT-159580
High-quality Stainless Steel Male Stud Coupling for light-duty applications, DIN 2353 compliant. Tube Diameter: 12.0 mm, Pressure: 315 bar.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling with O-Ring, Washer, and Metric Parallel Thread Body - DIN 2353 Compliant
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling with O-Ring, Washer, and Metric Parallel Thread Body - DIN 2353 Compliant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling with O-Ring and Washer Thread Metric Parallel - Body Only is designed for light-duty applications with a tube diameter of 12.0 mm and a nominal operating pressure of 315 bar. Featuring an M - Thread Size of 16x1.5, this coupling meets DIN 2353 standards, ensuring quality and reliability. The precision engineering of this coupling provides secure connections, making it ideal for various hydraulic systems in industrial settings.
Ready to Grow Without Cash Flow Constraints?

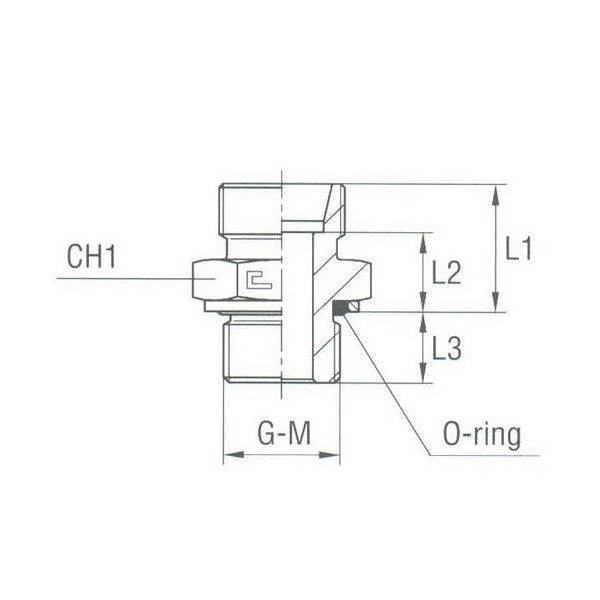

Product Specifications
Specifications Ch1
22 mm
Specifications L1
19.4 mm
Specifications L2
12.4 mm
Specifications L3
11.1 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
16x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread Metric Parallel
