Stainless Steel Male Stud Coupling with O-Ring, Washer, BSP Parallel Thread - Body Only

Name: Stainless Steel Male Stud Coupling with O-Ring, Washer, BSP Parallel Thread - Body Only
Brand: World Wide Metric, Inc.
SKU: FIT-509644
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-509644

Durable Stainless Steel Stud Coupling with O-Ring & Washer. Ideal for Extra Light Duty Applications. Compliant with DIN 2353 Standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

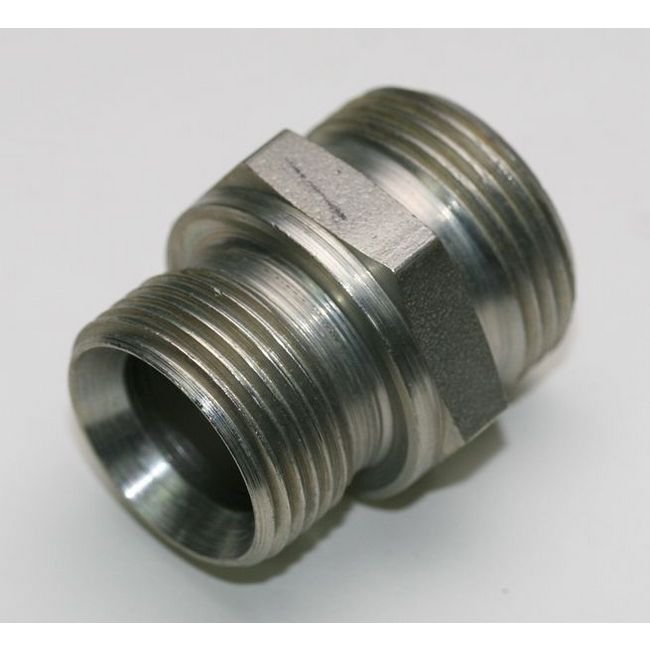

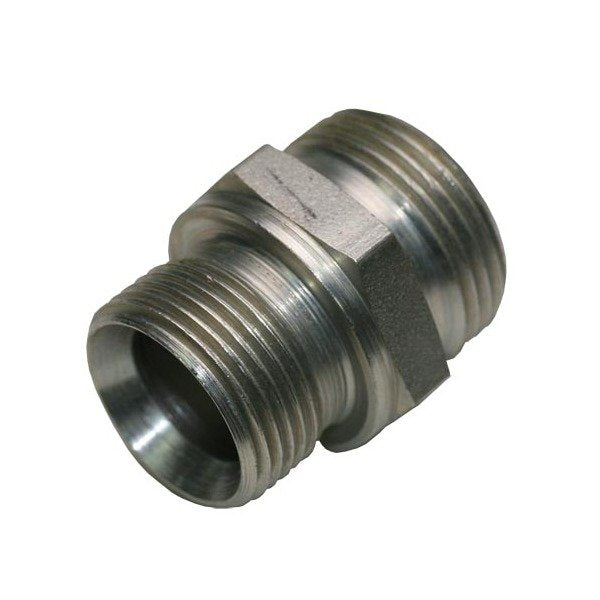

The Stainless Steel Male Stud Coupling with O-Ring and Washer is designed for extra light duty applications with a nominal operating pressure of 100 bar. Made from durable stainless steel, this fitting features a tube diameter of 4.0 mm and complies with DIN 2353 standards. With precise dimensions including G-Thread Size of 1/8 and CH1 of 14 mm, this coupling ensures a secure and leak-free connection. Ideal for various industries requiring reliable fittings that meet stringent quality standards.

Product Specifications

Specifications Ch1

14 mm

Specifications G Thread Size

1/8

Specifications L1

13.3 mm

Specifications L2

9.3 mm

Specifications L3

6.7 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

100 bar

Specifications Pressure

Extra Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

4.0 mm

Category 6

Male Stud Coupling with O-Ring and Washer Thread BSP Parallel
