Stainless Steel Male Stud Coupling with O-Ring, Washer, Metric Parallel Thread - DIN 2353 Compliant
Stainless Steel Male Stud Coupling with O-Ring, Washer, Metric Parallel Thread - DIN 2353 Compliant
SKU:FIT-5b4e04
High-quality Stainless Steel Male Stud Coupling with O-Ring, Washer, Metric Parallel Thread. DIN 2353 Compliant for secure connections in light-duty applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling with O-Ring, Washer, Metric Parallel Thread - DIN 2353 Compliant
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling with O-Ring, Washer, Metric Parallel Thread - DIN 2353 Compliant
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling is designed for durability and reliability in light-duty applications. Featuring a tube diameter of 35.0mm and a pressure rating of 160 bar, this coupling ensures secure connections. With compliance to DIN 2353 standards, it meets stringent quality requirements for industrial use.

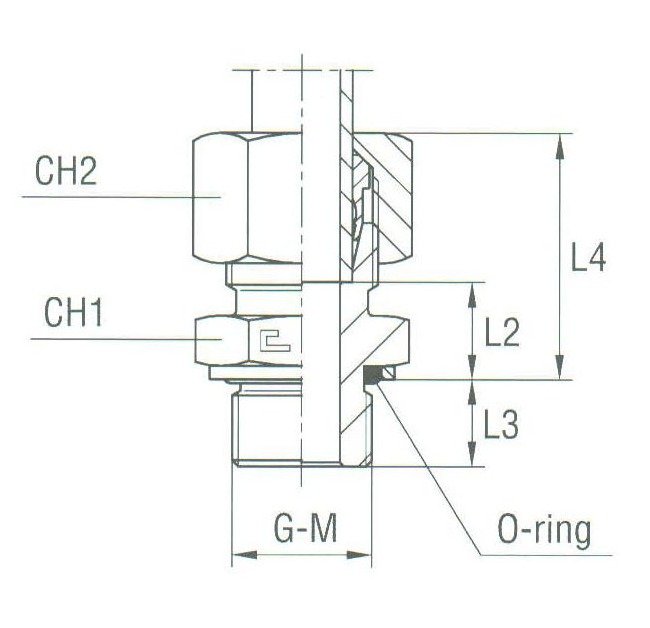

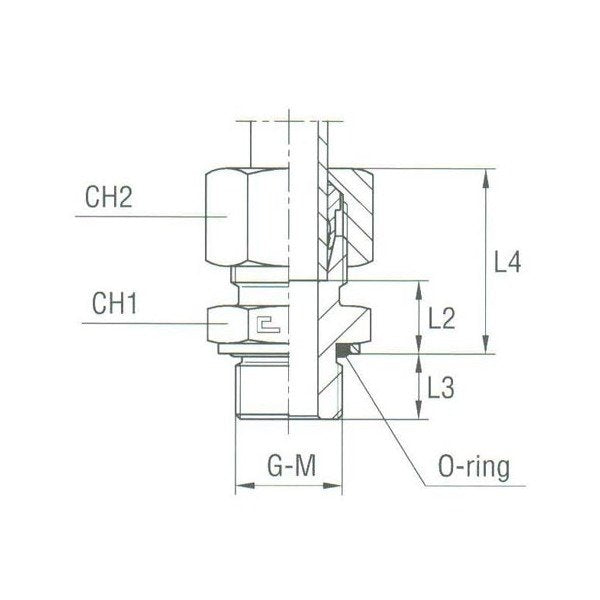

Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
50 mm
Specifications L2
17.5 mm
Specifications L3
17.0 mm
Specifications L4
39.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
42x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
35.0 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread Metric Parallel
