Stainless Steel Male Stud Non Return Valve
Stainless Steel Male Stud Non Return Valve
SKU:FIT-4a502d
High-performance Stainless Steel Male Stud Non Return Valve for hydraulic systems. Pressure range up to 350 bar. Durable construction for long-lasting reliability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Non Return Valve
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Non Return Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Non Return Valve with O-ring Thread provides exceptional performance in hydraulic systems. Featuring a Pressure range of Extra Light Duty to Heavy Duty, this valve ensures reliable operation at up to 350 bar. With precise dimensions and durable Stainless Steel construction, it guarantees long-term functionality. Ideal for institutional and government settings requiring high quality and compliance with industry standards.

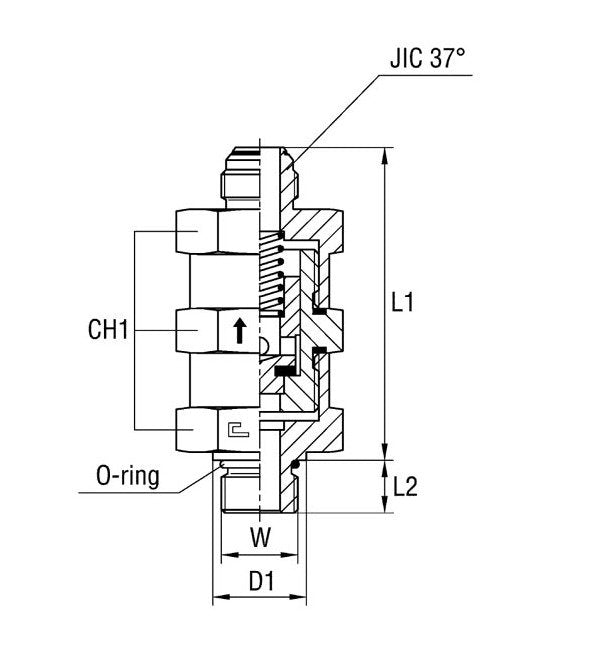

Product Specifications
Specifications Ch1
32 mm
Specifications D1
21.8 mm
Specifications Diameter Pass
8 mm
Specifications Jic 37 Thread
3/4-16
Specifications L1
70.7 mm
Specifications L2
11.1 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
12 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
3/4-16
Specifications W Tube Diameter
1/2 in
