Stainless Steel Male Stud Non Return Valve BSP - O-ring Seal
Stainless Steel Male Stud Non Return Valve BSP - O-ring Seal
SKU:FIT-2a8d6c
Premium Stainless Steel Non Return Valve for hydraulic systems. Ensures leak-free operation and withstands high pressures.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Non Return Valve BSP - O-ring Seal
$39.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Non Return Valve BSP - O-ring Seal
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel and O-ring Body is designed for extra light, heavy, and light duty hydraulic applications. With a nominal operating pressure of 350 bar, this valve ensures reliable performance. Made of high-quality stainless steel, it features precise dimensions, threaded ends, and an elastomer seal for leak-free operation.

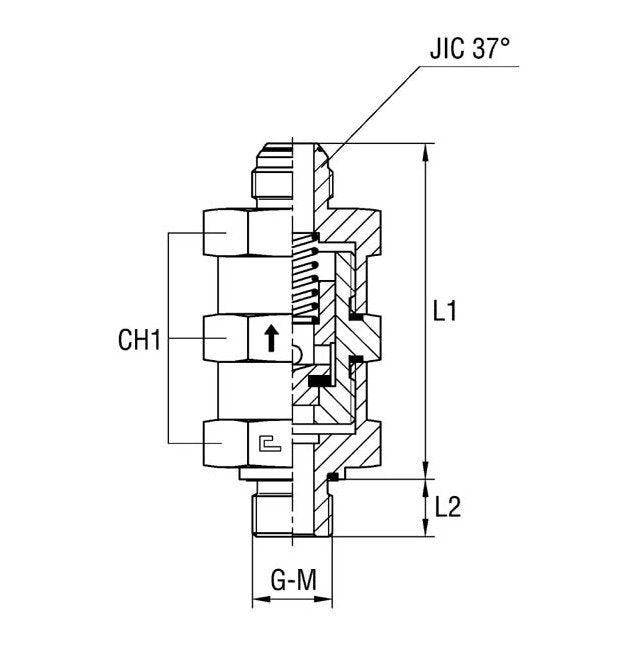

Product Specifications
Specifications Ch1
32 mm
Specifications Diameter Pass
8 mm
Specifications G Thread Size
3/8
Specifications Jic 37 Thread
3/4-16
Specifications L1
73.2 mm
Specifications L2
12.0 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
12 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1/2 in
