Stainless Steel Male Stud Non Return Valve BSP Parallel

Name: Stainless Steel Male Stud Non Return Valve BSP Parallel
Brand: World Wide Metric, Inc.
SKU: VAL-977e8f
Price: 49.99 USD
Availability: OutOfStock

SKU:VAL-977e8f

Stainless Steel Valve for Hydraulic Systems, Light Duty, 100 bar, BSP Parallel Thread

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

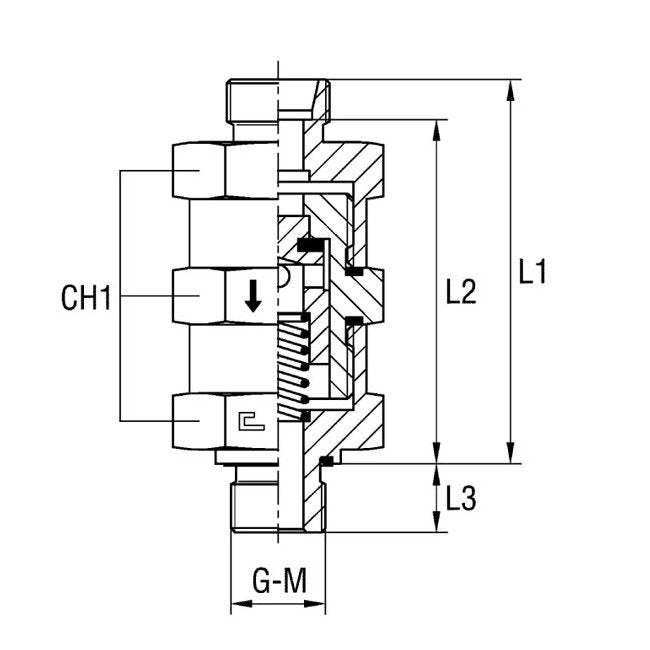

The Stainless Steel Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel offers superior performance in hydraulic systems. Built with stainless steel, this valve ensures durability and reliable operation under light-duty pressures up to 100 bar. With a tube diameter of 35.0 mm and precise measurements for L1, L2, L3, CH1, and Diameter Pass., this valve provides a secure fit for hydraulic applications. Compliant with industry standards, this valve is a dependable choice for both consumer and institutional buyers.

Product Specifications

Specifications Ch1

70 mm

Specifications Diameter Pass

25 mm

Specifications G Thread Size

1 1/4

Specifications L1

103.0 mm

Specifications L2

92.5 mm

Specifications L3

20.0 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

100 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

35.0 mm

Category 6

Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel

Stainless Steel Male Stud Non Return Valve BSP Parallel
