Stainless Steel Male Stud Non-Return Valve BSP Parallel
Stainless Steel Male Stud Non-Return Valve BSP Parallel
SKU:FIT-3adf59
Ensure hydraulic system integrity with this Stainless Steel Male Stud Non-Return Valve. Heavy-duty construction for reliability under pressure.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Non-Return Valve BSP Parallel
$39.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Non-Return Valve BSP Parallel
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non-Return Valve with Elastomer Seal Thread BSP Parallel - Body Only is a heavy-duty fitting designed for hydraulic systems. With a nominal operating pressure of 400 bar, stainless steel construction, and precise dimensions, this valve ensures reliable performance in high-pressure environments. The elastomer seal enhances durability and prevents leakage, making it ideal for industrial applications. Compliant with Federal procurement standards and industry certifications, this valve meets stringent quality requirements.

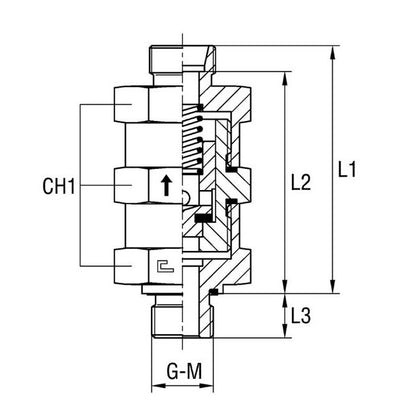

Product Specifications
Specifications Ch1
41 mm
Specifications Diameter Pass
11 mm
Specifications G Thread Size
1/2
Specifications L1
74 mm
Specifications L2
65.5 mm
Specifications L3
14.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
16.0 mm
