Stainless Steel Male Stud Non Return Valve - Hydraulic Check Valve

Name: Stainless Steel Male Stud Non Return Valve - Hydraulic Check Valve
Brand: World Wide Metric, Inc.
SKU: VAL-4a502d
Price: 49.99 USD
Availability: OutOfStock

SKU:VAL-4a502d

High-pressure Stainless Steel Male Stud Non Return Valve for hydraulic systems. Durable, reliable, and corrosion-resistant.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Male Stud Non Return Valve is designed for heavy-duty hydraulic applications, with a nominal operating pressure of 350 bar. Featuring a UNF/UN-2A threaded O-ring body, this valve ensures secure sealing and reliable performance. The valve is constructed from durable stainless steel, offering exceptional resistance to corrosion and wear. With a 12mm tube diameter and 3/4-16 thread size, it meets high-quality standards for hydraulic systems in both consumer and institutional environments.

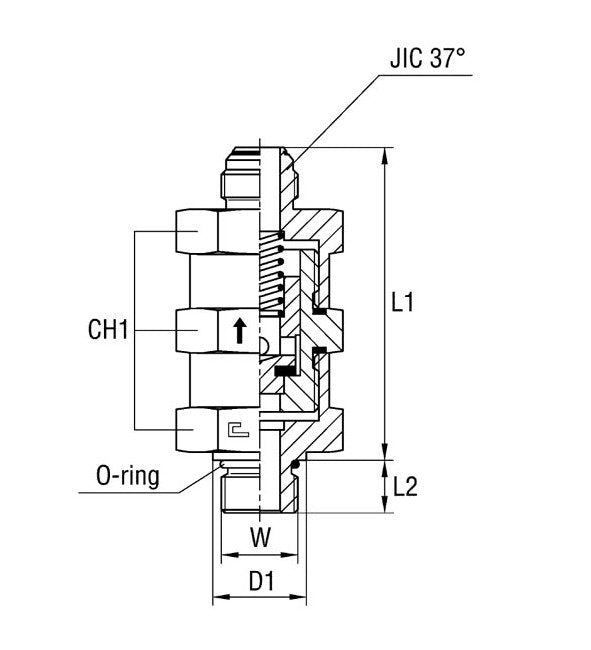

Product Specifications

Specifications Ch1

32 mm

Specifications D1

21.8 mm

Specifications Diameter Pass

8 mm

Specifications Jic 37 Thread

3/4-16

Specifications L1

70.7 mm

Specifications L2

11.1 mm

Specifications Material

Stainless Steel

Specifications M Tube Diameter

12 mm

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Thread Size

3/4-16

Specifications W Tube Diameter

1/2 in

Category 6

Male Stud Non Return Valve with O-ring Thread UNF/UN-2A

Stainless Steel Male Stud Non Return Valve - Hydraulic Check Valve
